Teknion Navigate height-adjustable bench Manual page 119

height-adjustable bench
Section: SOLID GABLES & CABLE CHANNEL

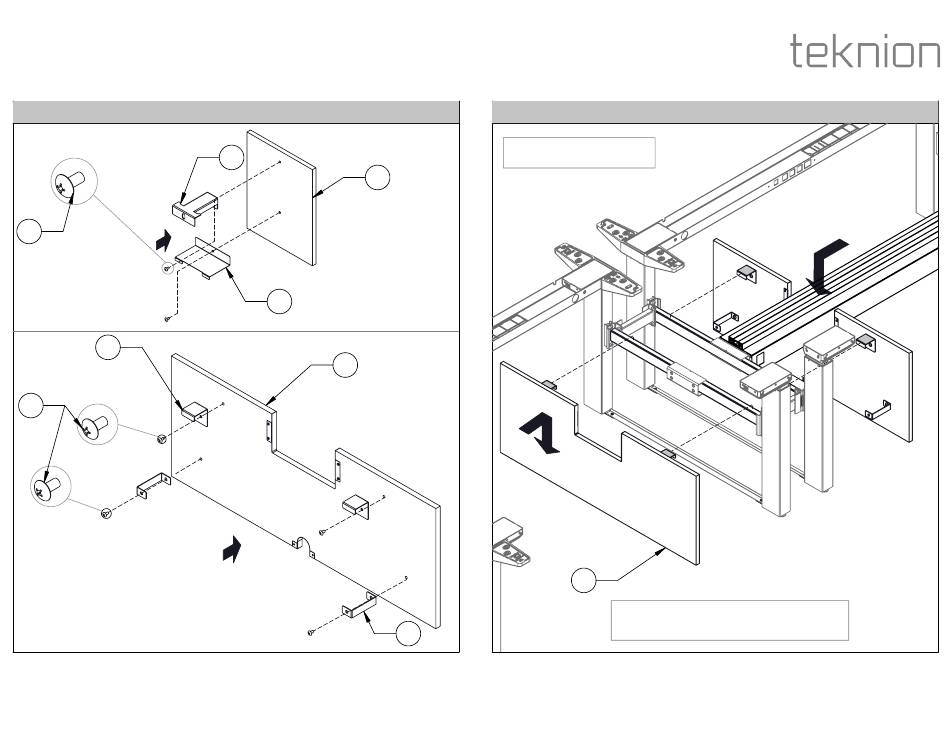

ATTACH MID GABLE SUPPORT BRACKET
3.9
3.5
3.9 3.9
STEP 11: Secure the Brackets and Cover Plates to Side Cover Assemblies and Front Cover as
Shown.
3.7
3.3
3.8
3.1
3.6
Installation Guides
MOUNT SIDE COVER ASSEMBLY
NOTE: Parts of the Frame are
hidden for Illustration Purpose.
3.2
NOTE: Please Refer to Specificstion Drawing to
mount the correct side Cover Assembly.
STEP 12: Mount Side Cover Assembly onto the Stretcher Bar as shown.
Date: Feb 2022 Page: 12 of 18
HABN_223b
