Section: ELECTRICS
Description:
NAVIGATE BASE FEED INSTALLATION
INSTALL SPLIT BASE FEED

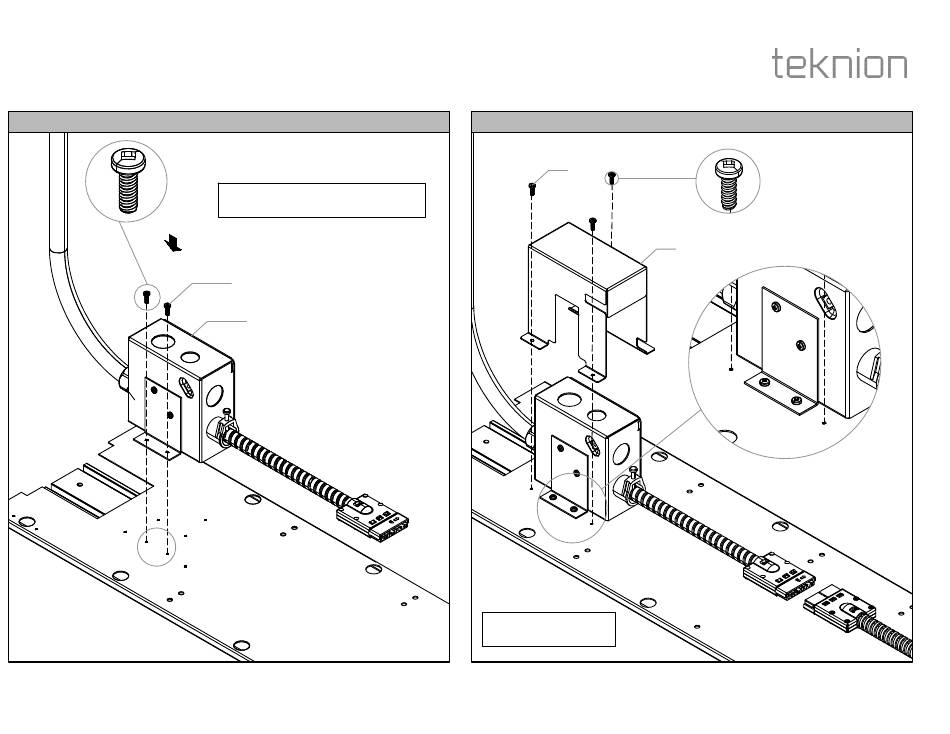

STEP 1a: Align the Split Base Feed Bracket with Pilot Holes and Fasten it as shown
Installation Guides
NOTE: Cable Channel is hidden for
illustration purposes
C2
C1
INSTALL BOX COVER (OPTIONAL)
F3A
NOTE: Connect the Base
Feed to Power Harness
STEP 1b: Install Box Cover. Connect the Base Feed to the Power Harness (24").
Date: May 2022 Page No:
HABN_321c
F2
3 of 10
