Teknion Navigate height-adjustable bench Manual page 120

height-adjustable bench
Section: SOLID GABLES & CABLE CHANNEL

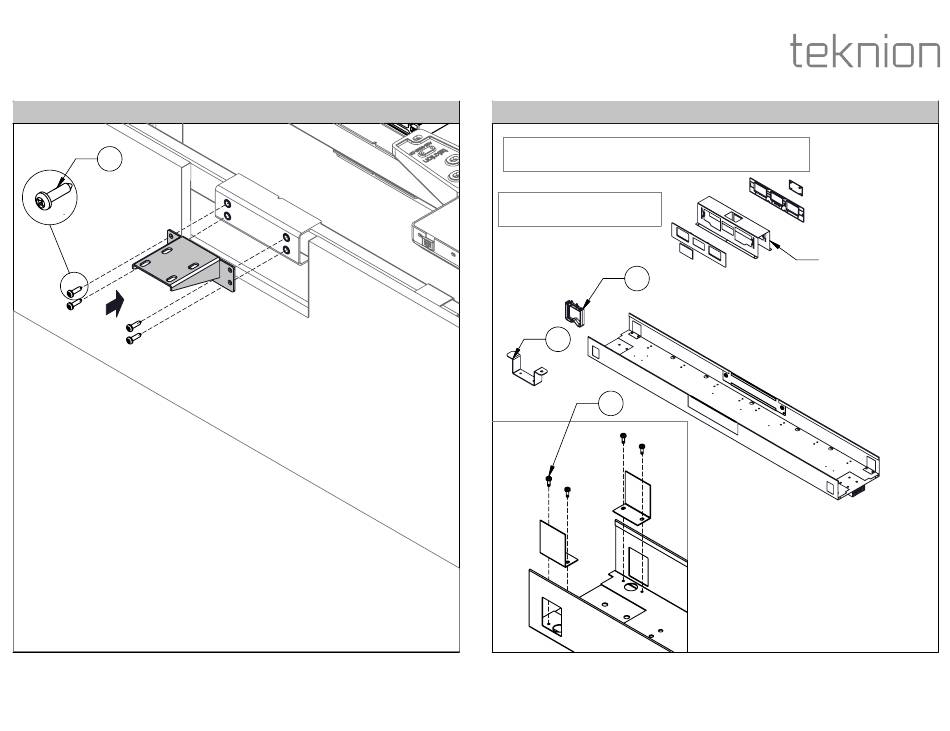

SECURE SIDE COVER ASSEMBLY
1.6
STEP 13: Secure Side Cover Assembly onto Stretcher Bar with Bolts. Do it on both Sides.
Installation Guides
CABLE CHANNEL ASSEMBLY
NOTE:Install Cable Channel Cover Plate on Cable Channel
Where Vertical Wire Carrier is not specified or unused location.
NOTE: Electrics are not included
with the Cable Channel.
1.7
1.6
NOTE: Electrics components to be installed on Cable Channel before connecting to Support
Bracket. Please refer to Installation Guide 321a, 321b, 321c,322a or 322b for corresponding
Electrics installation.
Date: Feb 2022
HABN_223b
1.8
Page: 13 of 18
Power Module Cover
