SCREENS AND GABLES
HABN_225e

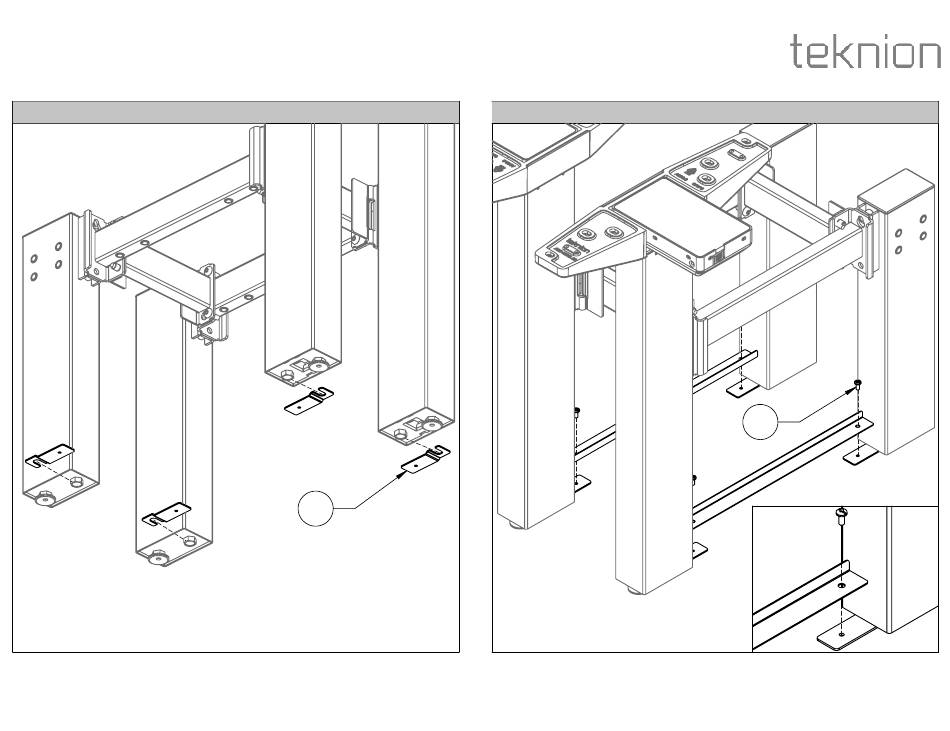

ATTACH CONNECTING PLATES TO FRAME LEGS
MOUNT BOTTOM ANGLE BAR
2.17
2.11
STEP 6: Loosen Legs Hex Bolt to allow enough room for Gable Connecting Plate. Fasten
STEP 7: Mount Bottom Angle Bar and secure to Gable Connecting Plate on both sides using
Gable Connecting Plates to Frame Legs
Tap Quad Pan screws provided
