Teknion Navigate height-adjustable bench Manual page 142

height-adjustable bench
SCREENS AND GABLES
Section:
Description: SINGLE SIDED NAVIGATE WIRE CHANNEL
Installation Guides

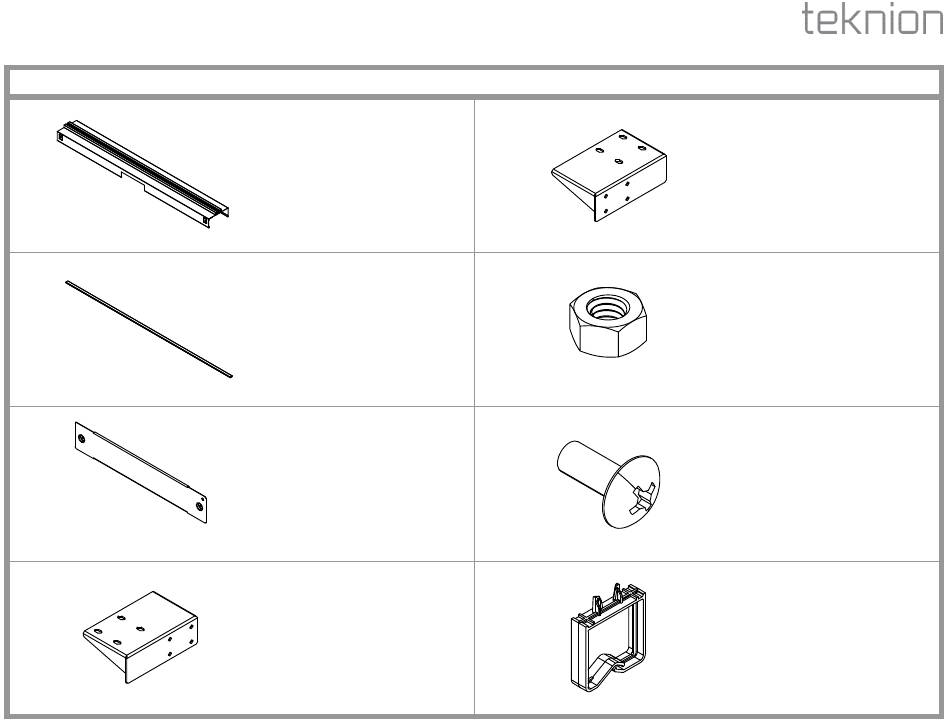

Part and Product Identification
A - Wire Channel, Single Sided
(N09-8570) x1
B - Center Rail Extrusion Cap Cut
Length
(A23-5200) x1
C - Access Door Navigate Wire
Channel
(N01-4420) x1
D - Support Bracket - Screen Rail,
Single Sided
(A16-7245R) x1
Date: Sep 2024 Page No:
HABN_223f Rev. No: 0
E - Support Bracket - Screen Rail,
Single Sided
(A16-7245L) x1
F - 5/16 - 18 Hex Nut, 1/2 A/F,
0.265 THK
(E01-0755) x8
G - 1/4 - 20 x 5/8" MACH Screw
(E01-0113) x8
H - Wire Manager Clip
(B02-2007) x12 or x16 or x20
2 of 8
