Teknion Navigate height-adjustable bench Manual page 26

Section: FRAMES AND WORKSURFACES
Description: 120 HA FRAME

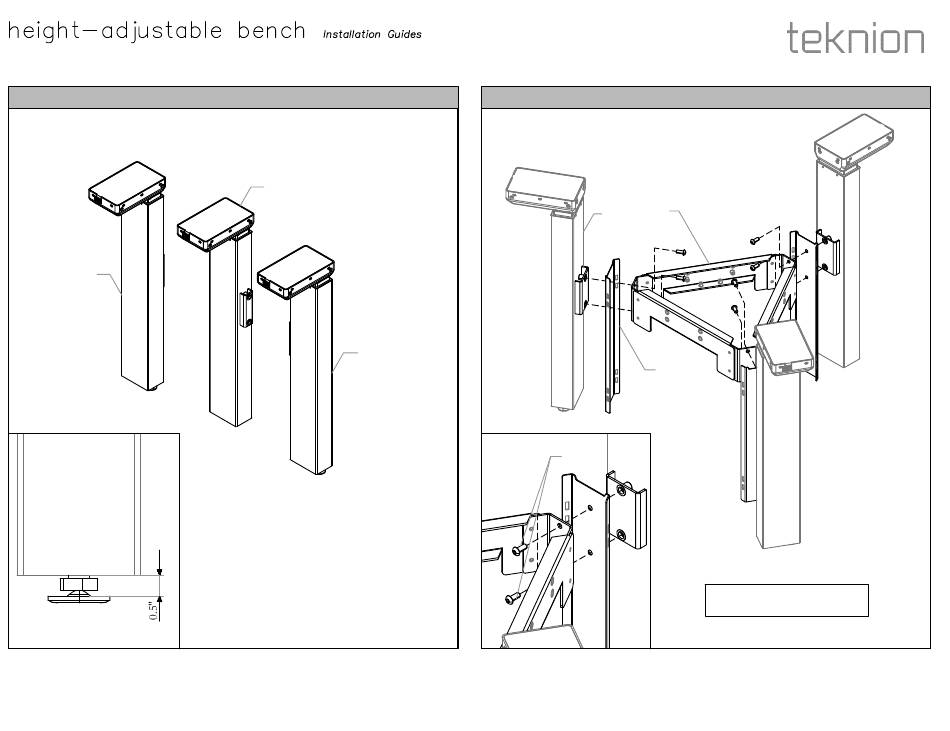

LEVELLER ADJUSTMENT
A2
STEP 1: Adjust the Leveller to have a 0.5" Gap on all the Legs.
A6
A5
ASSEMBLE LEG AND MID GABLE STRATCHER
A1
A2
Hanger
Plate
A17c
STEP 2: Assemble legs and Mid Gable stretcher as shown above. Assemble Hanger Plate if mid
gable is specified. Secure it using the Screws provided.
Date: Jan 2024
Page No:
HABN_123
NOTE: For Mid Gable assembly,
refer to HABN_224b.
4 of 18
