SCREENS AND GABLES
HABN_225d
MOUNT OUTSIDE COVER ASSEMBLY
Side View
1.2
Detailed Isometric View

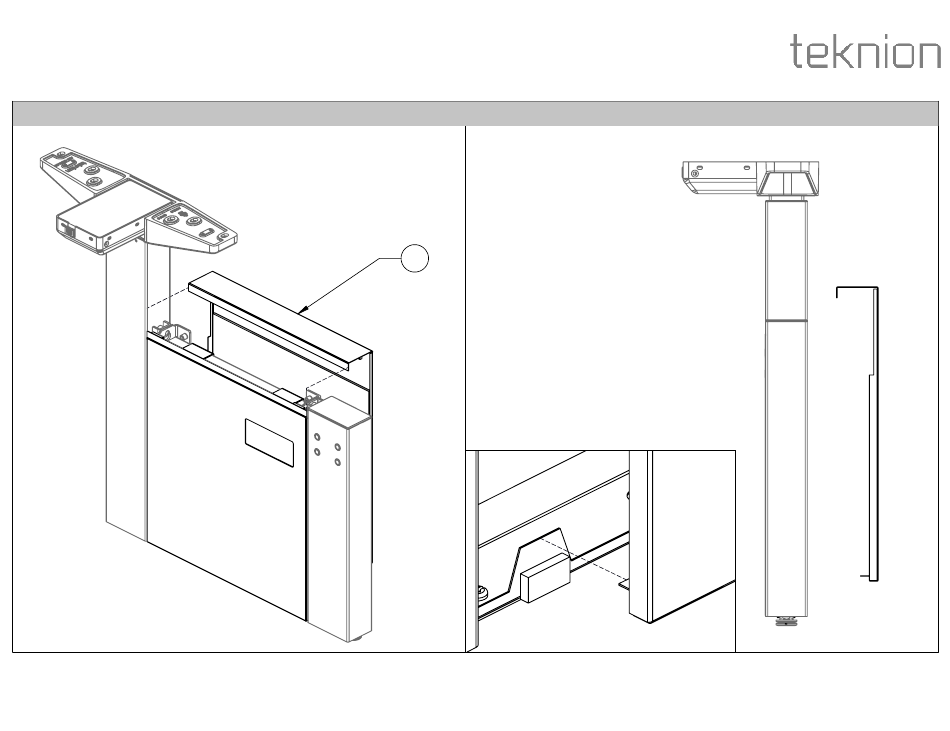

STEP 5: Mount Outside Cover Assembly to the highlighted part of the Inside Cover Assembly as shown.
