height-adjustable bench
Section:
ELECTRICS
Description:

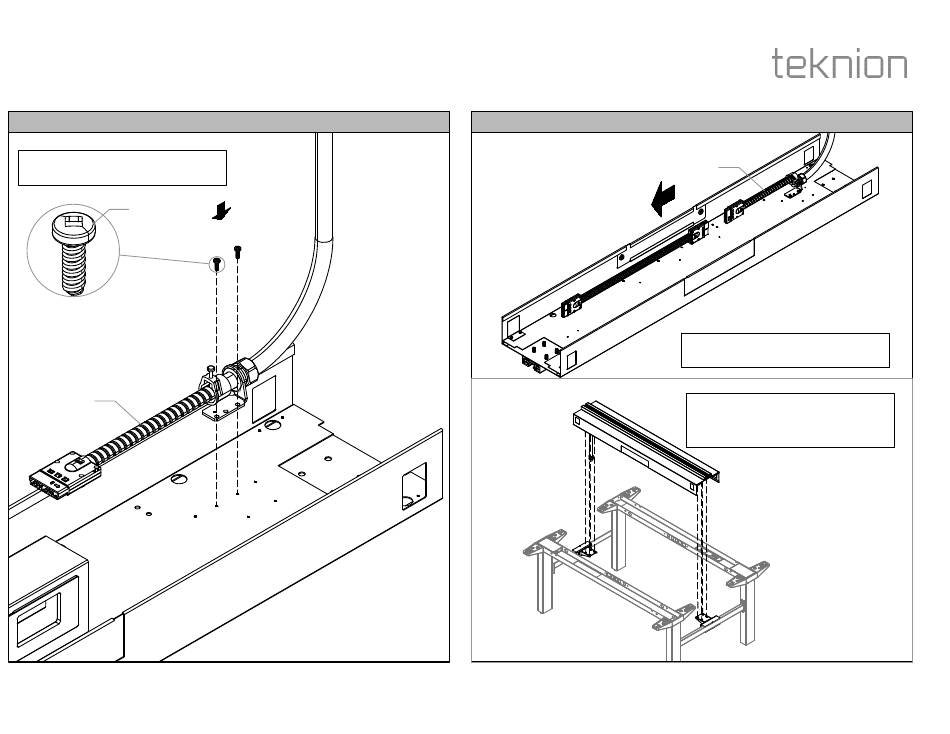

NAVIGATE BASE FEED INSTALLATION
INSTALL BASE FEED
NOTE: Chicago Base Feed (HNBEBFCH)
is similar to Base Feed(HNBEBF)
A2
A1
STEP 2 : Install base feed. If Required, 2x #8 Self Drilling Screws can be used
Installation Guides
ATTACH BASE FEED & INSTALL CABLE TRAY
STEP 3: Install Base Feed onto the Power Harness as shown other end of the Power Harness
to the Power Module. Install Cable Tray to the Frame after installing ALL ELECTRICS on to
the Wire Channel
Date:
May 2022
Page No:
HABN_321c
A1
NOTE: Power Harness should always be a
24" Linking Harness
NOTE: Flip Cable Tray over and install to
Frame Cable Tray to be installed AFTER
ALL Electrical components have been
installed
4 of 10
