Summary of Contents for Teknion height-adjustable bench
Page 1

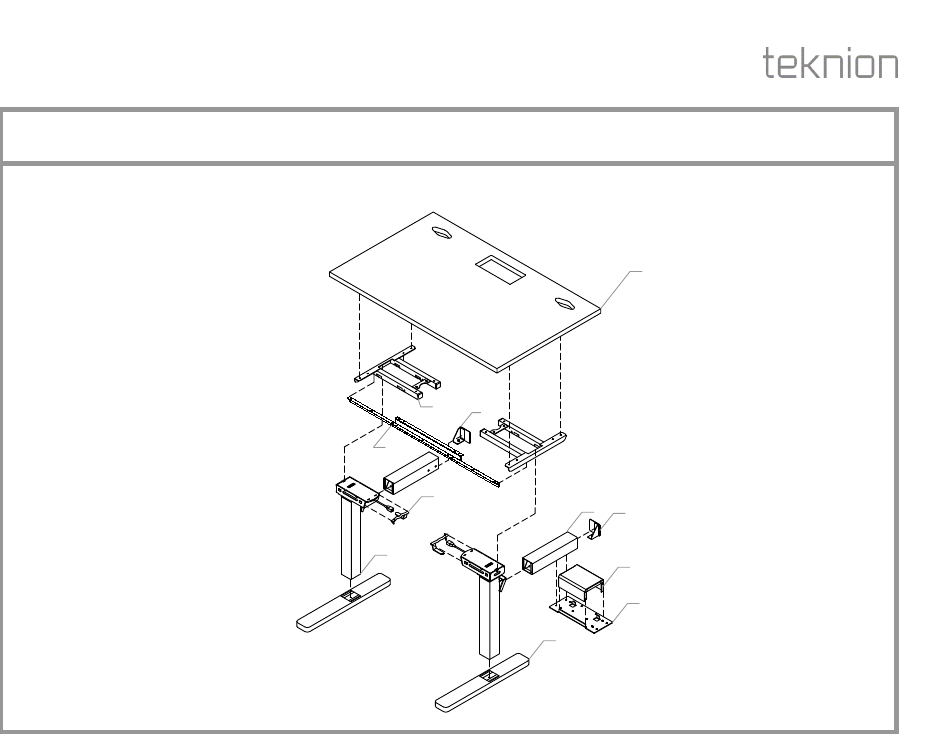

Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 1 of 19 Description: FRAME SINGLE-SIDED HAB HABH_113 Rev. No: 1 Single-Sided Worksurface (HWBWBS),Single-Sided Worksurface w/Radius Corners (HWBWJS),Single-Sided Frame (HWBFYS) Single-Sided Frame (HWBFYS2F), Single-Sided Base Link (HWBFBS) and Single-Sided Weldment Cover (HWBFSC)
Page 2
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 2 of 19 Description: FRAME SINGLE-SIDED HAB HABH_113 Rev. No: 1 Part and Product Identification A2 - Single-Sided Worksurface A1 - Single-Sided Worksurface w/Radius Corners (HWBWBS) x1...
Page 3
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 3 of 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH LEG MOUNT BRACKETS ATTACH REINFORCEMENT BAR NOTE: Do not over tighten NOTE: Do not over tighten NOTE: Worksurface upside down STEP 1: Place Worksurface upside down on the floor and Attach Leg Mount Brackets as STEP 2: Attach the Reinforcement Bars to the Worksurface.
Page 4
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 4 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH LEGS TO BRACKET SECURE LEGS TO BRACKET - 1 NOTE: C1 Leg (N01-7983) is for Height adjustable bench (HWBFYS)
Page 5
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 5 of 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH LEGS TO BRACKET SECURE LEGS TO BRACKET - 1 NOTE: C2 Leg (N01-7764) is for Fixed bench (HWBFYS2F)
Page 6
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 6 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 SECURE LEGS TO BRACKET - 2 SECURE LEGS TO BRACKET - 3 STEP 5: Install Cam Handle into Bracket and turn towards Leg to lock.
Page 7
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 7 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH FRAME CONNECTING TUBES SECURE FRAME CONNECTING TUBES NOTE: Each Bracket should have holes pointing inward. STEP 7: Attach the Frame Connecting Tubes to the Brackets on the Leg Assembly.
Page 8
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 8 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH FEET TO LEGS NOTE: Position Feet to this direction NOTE: Position Feet in this for 24" Depth direction for 30" Depth.
Page 9
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 9 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH CONTROL BOX TO WORKSURFACE NOTE: If Felt Cover Organizer is specified refer to guide HABH_317 before installing the Control Box.
Page 10
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 10 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH CONNECTOR STEP 11: Attach the Control Box to the Legs using Connector Cable as shown. NOTE: Don't have to Attach connector for fixed height (HWBFYS2F)
Page 11
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 11 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH SWITCH AND WIRE MANAGEMENT NOTE: Don't have to Attach NOTE: Do not over tighten keypad for fixed height (HWBFYS2F) STEP 12a: Secure Keypad to Worksurface and connect to Control Box using attached cable.
Page 12
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 12 of 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH SWITCH AND WIRE MANAGEMENT NOTE: Don't have to Attach NOTE: Do not over tighten Toggle switch for fixed height (HWBFYS2F) STEP 12b: Secure Toggle switch to Worksurface and connect to Control Box using attached cable.
Page 13
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 13 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 SECURE LOOSE WIRE NOTE: Do not over tighten STEP 13: Secure loose wires to Worksurface using Cable Clamps. NOTE: Don't have to Secure loose wire for fixed height (HWBFYS2F)
Page 14
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 14 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 FLIP OVER TABLE NOTE: Please make sure to have at least two people for this step STEP 14: Flip over the Table...
Page 15
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 15 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 LINKING ASSEMBLYS: ALIGN WORKSURFACES 2" STEP 15: Bring over 2nd Assembly and Align Worksurfaces so that they are 2" apart.
Page 16
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 16 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ROUGH LEVELING NOTE: If the difference in elevation is >10mm use Single-Sided Leveler Extension Blocks (SOLD SEPARATELY) to increase leveling range.
Page 17
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 17 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 ATTACH BASE LINK ATTACH BASE LINK COVER STEP 17: Attach Base Link to underside of Frame Connecting Tubes and secure using STEP 18: Attach the Base Link Cover to the Base Link by placing it on the bracket and provided screws.
Page 18
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 18 0f 19 Description: FRAME SINGLE-SIDED HAB HABH_113 LEVELING BENCH - FINAL ADJUSTMENTS NOTE: It is recommended to use a laser level tool to check final alignment.
Page 19
Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 19 0f 19 Description: SINGLE SIDED WELDMENT COVER HABH_113 ATTACH SINGLE SIDED WELDMENT COVER NOTE: Weldment Covers are used to cap off the horizontal bar on a single-sided frame when no corridor screen is used.
