Teknion Navigate height-adjustable bench Manual page 180

height-adjustable bench
Section: SCREENS AND GABLES
ATTACH END SCREEN TO FRAME
2.3

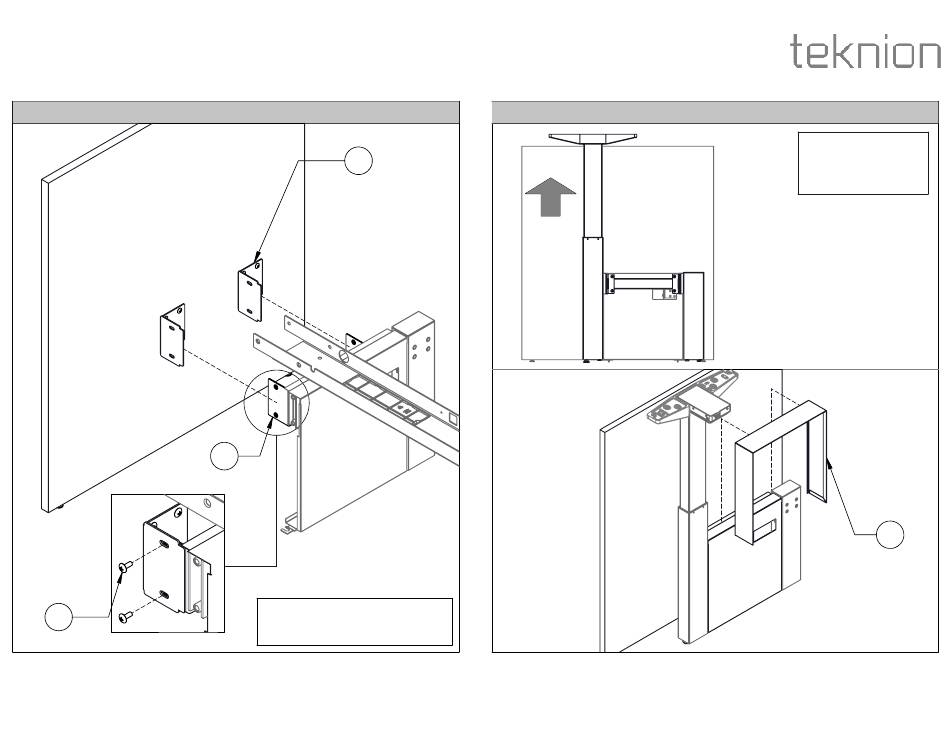

STEP 7: Attach the End Screen to the Frame using the Screws provided.
2.2
2.1
NOTE: If the screen is tilted forwards or
backwards, the slots in the Outer/Inner
brackets allow the screen to be adjusted.
Installation Guides
PLACE TOP COVER ON FRAME
STEP 8: Raise the height of the Frame, then place the Top Cover of the Gable on top of the
Assembly.
Date: Sept 2019 Page: 6 of 6
HAB_225c
NOTE: Raise the frame to
its' MAXIMUM height
before placing the Top
Cover.
4.1
