SOLID GABLES & CABLE CHANNEL
ATTACH CABLE CHANNEL & CENTER RAIL

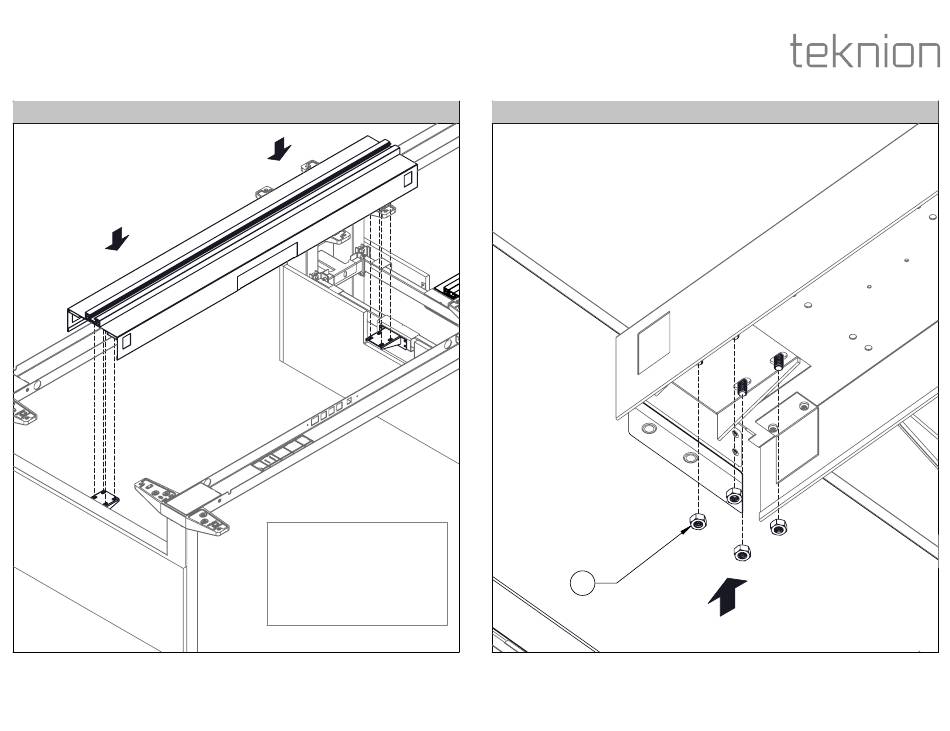

STEP 14: Align holes on Support Brackets, Cable Channel Assembly. Insert Bolts inside
Centre Rail Extrusion through Cable Channel Assembly and Brackets as shown
Installation Guides
NOTE: Electrics Components to
be installed on Cable Channel
before connecting to support
Bracket. Please refer to Installation
Guide321a, 321b, 322a, 322b for
Corresponding Electric installation.
SECURE CABLE CHANNEL
Underside View
1.4
STEP 15: Secure Cable Channel in place with Nuts
Date: Feb 2022
Page: 14 of 18
HABN_223b
