Teknion Navigate height-adjustable bench Manual page 173

height-adjustable bench
Section: SCREENS AND GABLES
ATTACH SCREEN TO FRAME
2.2
2.1
NOTE: If the Screen is tilted forwards or
backwards, the slots in the Outer/Inner
Brackets allow the screen to be adjusted

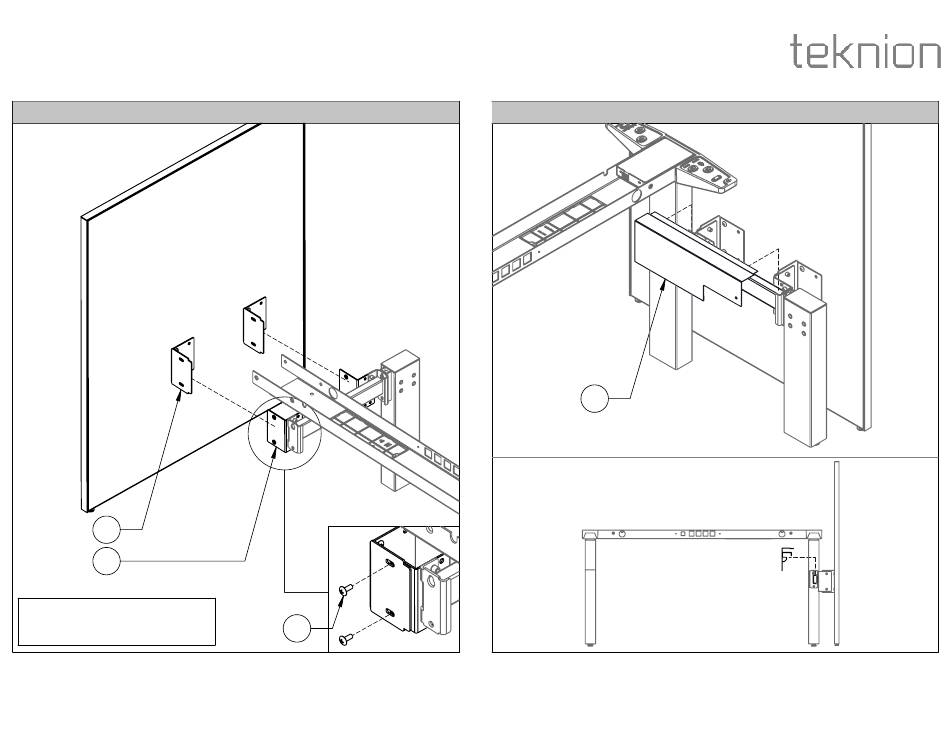

STEP 4: Attach the End Screen to the Frame using the Screws Provided.
Installation Guides
2.3
PLACE INSIDE COVER ON FRAME
3.2
STEP 5: Place the Inside Cover on the Frame. Ensure the Inside Cover Brackets are mounted
properly.
Date: Sept 2019 Page: 5 of 6
HABN_225b
