SCREENS AND GABLES
SCREEN MOUNTING KIT ASSEMBLY

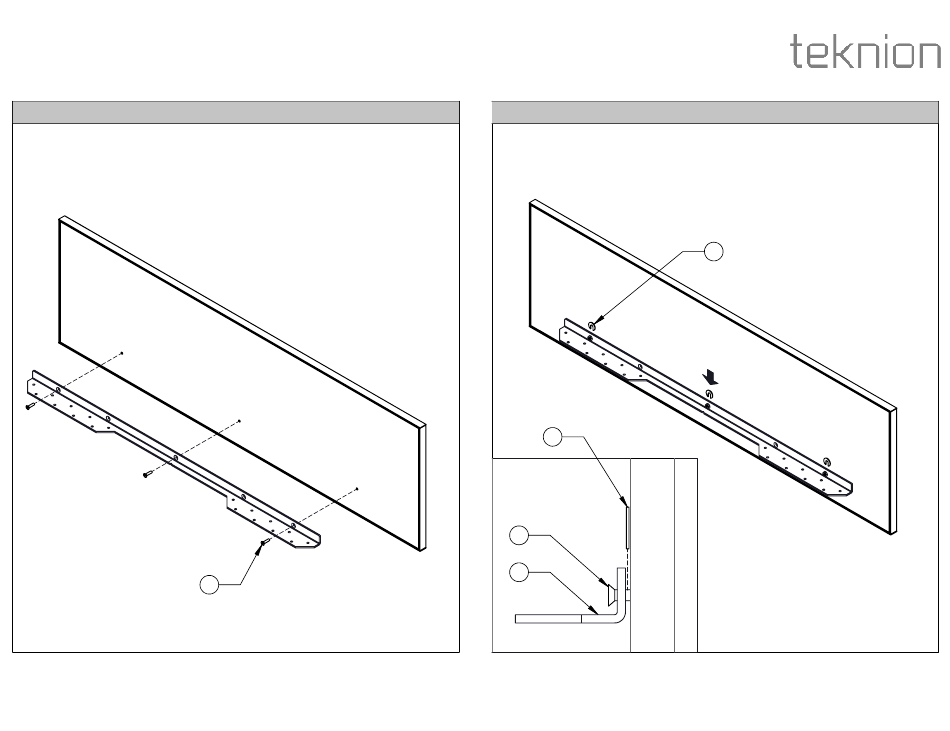

STEP 1: Fasten Screen Bar Subassembly and Mounting Bracket to the Screen looseley.
NOTE: If 48" & 54" Desk Edge Screen is specified, Rectangular Grommet CANNOT be
installed at the centre.
2.2
Installation Guides
INSERT WASHER & TIGHTEN BRACKET
2.3
Side View
2.2
2.1
STEP 2: Insert Slotted Washers to Screws between Bracket and Fabric Frame, then Tighten
the Screws fully.
Date: May 2019
HABN_221c
2.3
Page: 3 of 6
