METAL GABLES & CABLE CHANNEL
ATTACH SUPPORT BRACKET

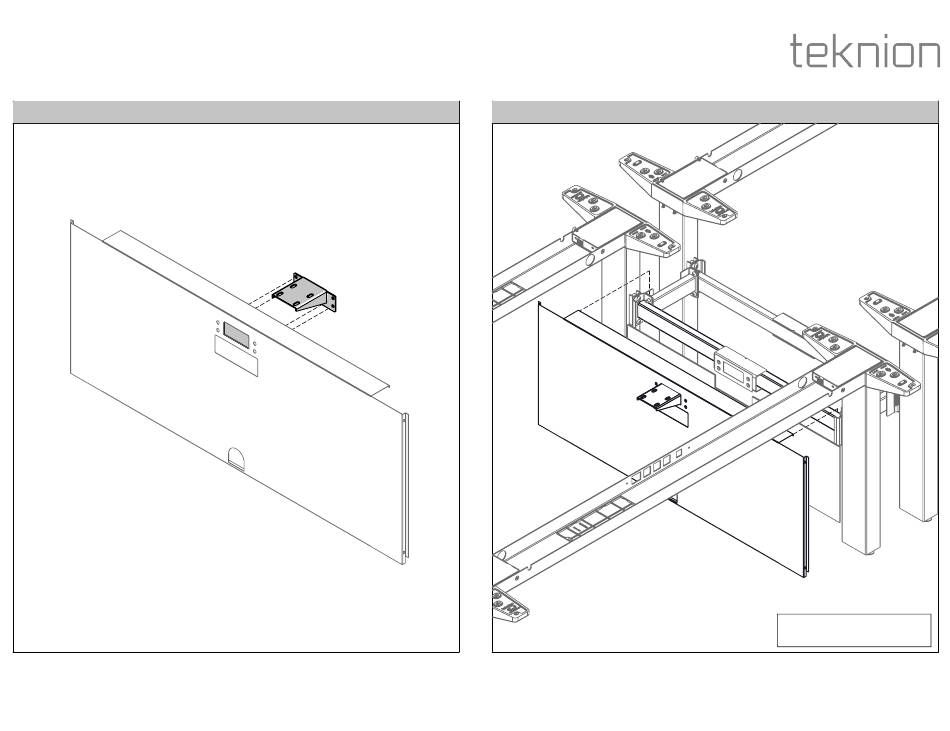

STEP 8: Insert Support Bracket through the cut-out on the Side Cover Assembly
Installation Guides
STEP 9: Mount Side Cover Assembly onto the Stretcher Bar as shown
NOTE: Please refer to Specification Drawing to mount the correct Side Cover Assembly
Date: Feb 2022
HABN_223a
SCREEN AND GABLES
NOTE: Parts of the Frames are
hidden for Illustration Purpose.
Page: 10 of 18
