Teknion Navigate height-adjustable bench Manual page 163

height-adjustable bench
Installation Guides
Date: Sept 2019 Page: 3 of 4
Section: SCREENS & GABLES
HAB_224b

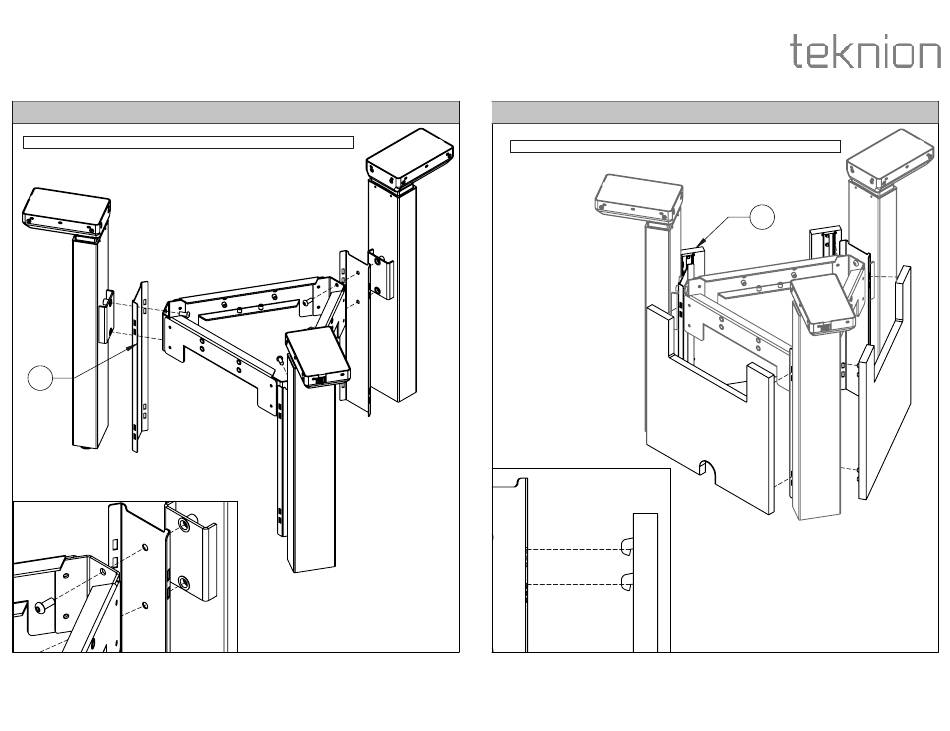

ATTACH COVER PLATE TO FRAME ATTACH SPACER TO FRAME
NOTE: Please refer to HAB_123 for hardware components required
NOTE: Please refer to HAB_123 for hardware components required
1.3
1.2
STEP 1: Attach the Cover Plate to the Legs and Mid-Gable Stretcher Assembly using STEP 2: Attach the Spacer to the Mid-Gable Stretcher Frame along with the Bracketm using
the Machine Screws provided with the 120 Frame. the Screws provided with the Cable Channel.
