Teknion Navigate height-adjustable bench Manual page 261

height-adjustable bench
Section: ELECTRICS
INSTALL UPPER EXTRUSION
B5E

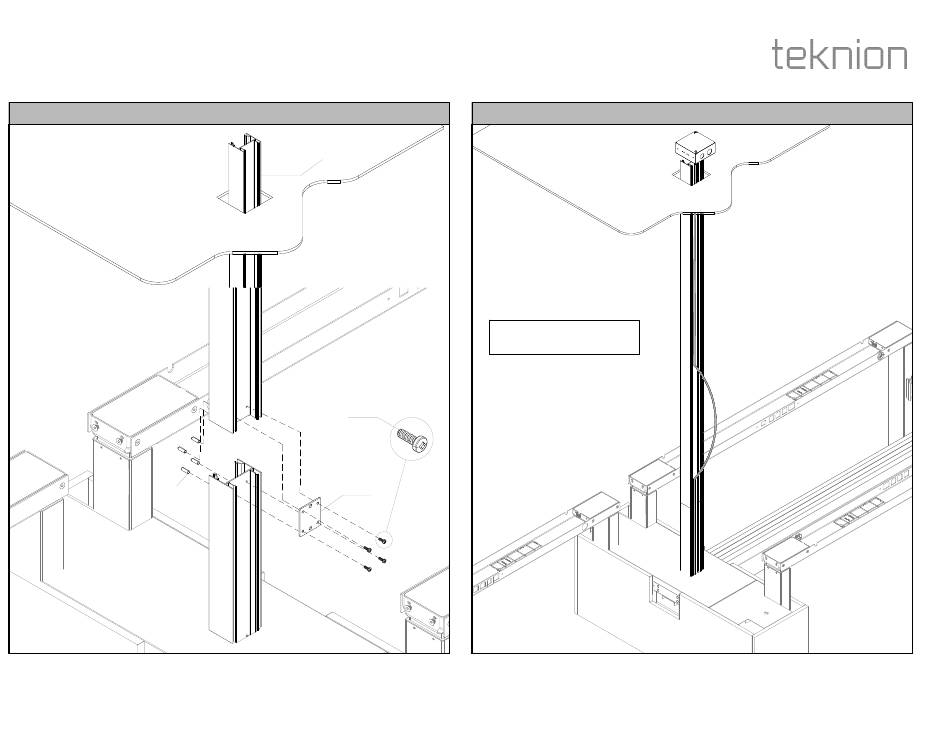

STEP 5: Insert Upper Power Pole Extrusion inside Ceiling Cut-Out (Uncut edge down).
Drop Power Pole Upper Extrusion on the Top of Lower Extrusion and Connect them
together using Connection Plate and Screws with Caps on other side of pole from Screws
Installation Guides
B1
NOTE: Cable Channel
hidden for illustration
B5D
B5F
STEP 6: Drop Ceiling Feed cable down through ceiling Cut-out down along the Power Pole
Slide junction box Inside the Power Pole Extrusion
CEILING FEED ASSEMBLY
Date: May 2022 Page No: 6 of 9
HABN_322b
