height adjustable bench
Section: ELECTRICS

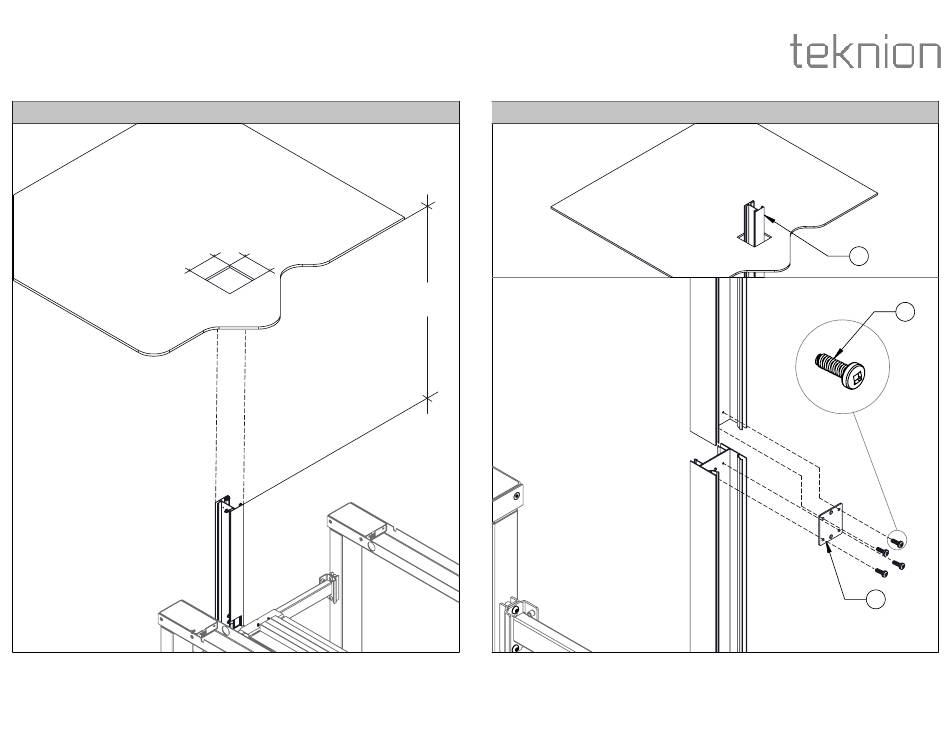

CEILING CUT OUT
3 1/2"
STEP 5:Mark Power Pole position on the ceiling using Plum Bob line. Cut 3 1/2" x 3 1/2"
opening. Measure distance from top of the Lower Power Pole Extrusion to the ceiling. Add
approx 3" to that dimension and cut Power Pole and Power Cover to that measurement.
Installation Guides
3 1/2"
Power Pole length
=distance + 3"
INSTALL UPPER EXTRUSION
Top Portion Shown
Bottom Portion Shown
STEP 6: Insert Upper Power Pole extrusion inside ceiling cut-out (Uncut edge down). Place
the Bottom Surface of the Power Pole on top of Lower Bottom Extrusion and Connect them
together using connecting Plate and Screws.
Date: Sept 2019 Page: 5 of 9
HABN_322a
2.5
2.9
2.4
