height-adjustable bench
Section:
SCREENS & GABLES
Navigate End Cover - Metal (HNBCCEMN), Navigate Mid Cover - Metal (HNBCCMMN)
Installation Guides
Date: May 2019
Page: 1 of 4
HABN_223c

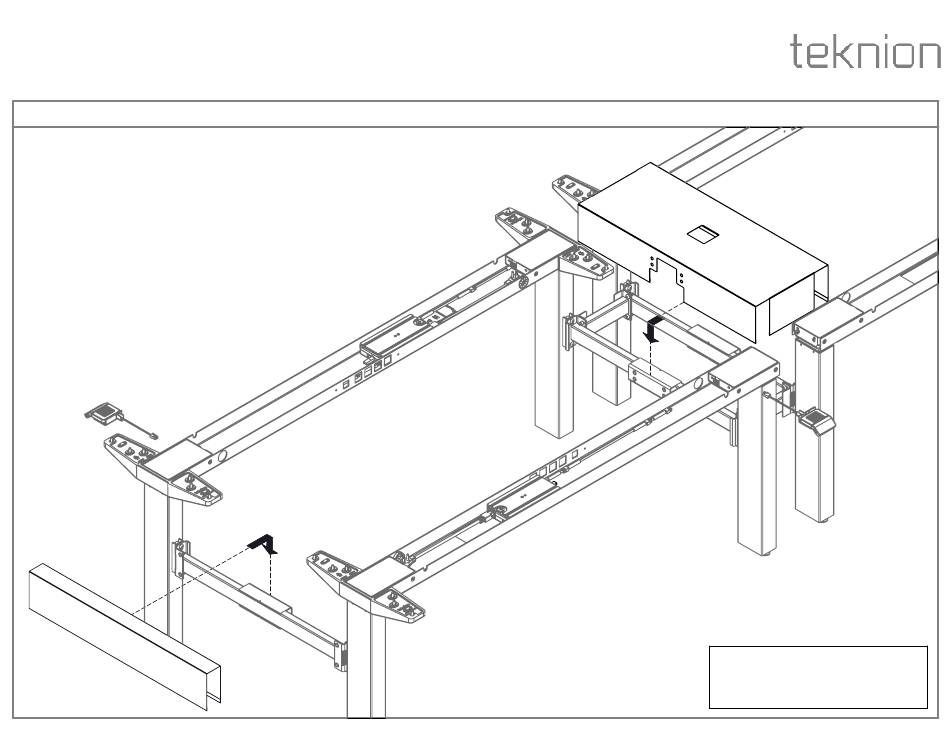

Note: Mid Cover with Power Pole Cut-out is
Shown as Example. For Cable Channel
installation procedures, please refer to guide
HABN_223a/223b
Rev. 01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teknion Navigate End Cover-Metal
Summary of Contents for Teknion Navigate End Cover-Metal
- Page 1 height-adjustable bench Installation Guides Date: May 2019 Page: 1 of 4 Section: SCREENS & GABLES HABN_223c Rev. 01 Navigate End Cover - Metal (HNBCCEMN), Navigate Mid Cover - Metal (HNBCCMMN) Note: Mid Cover with Power Pole Cut-out is Shown as Example. For Cable Channel installation procedures, please refer to guide HABN_223a/223b...
- Page 2 height-adjustable bench Installation Guides Date: May 2019 Page: 2 of 4 Section: SCREENS & GABLES HABN_223c Part & Product Identification ITEM NO. PREVIEW DESCRIPTION PART NUMBER QTY. END COVER, DOUBLE SIDED, HAB A16-7445-X MID COVER, DOUBLE SIDED, HAB A16-7446-X...
- Page 3 height-adjustable bench Installation Guides Date: May 2019 Page: 3 of 4 Section: SCREENS & GABLES HABN_223c PLACE END COVER & BRACKET ON FRAME BAR SECURE END COVER IN PLACE Note: Support Bracket ships with Cable Channel. For Cable Channel installation procedures, please refer to guide HABN_223a/223b STEP 1: Slide Cable Channel Support Bracket into End Cover, making sure holes align.
- Page 4 height-adjustable bench Installation Guides Date: May 2019 Page: 4 of 4 Section: SCREENS & GABLES HABN_223c PLACE MID COVER ON STRETCHER BARS SECURE MID COVER IN PLACE Note: For Cable Channel installation procedures, please refer to guide HABN_223a/223b STEP 3: Place Metal Mid Cover on top of Stretcher Bars and Cable Channel Support STEP 4: Use Screws provided with Support Brackets to secure Metal Mid Cover in place.
