Teknion Navigate height-adjustable bench Manual page 209

height-adjustable bench
Section: SCREENS & GABLES

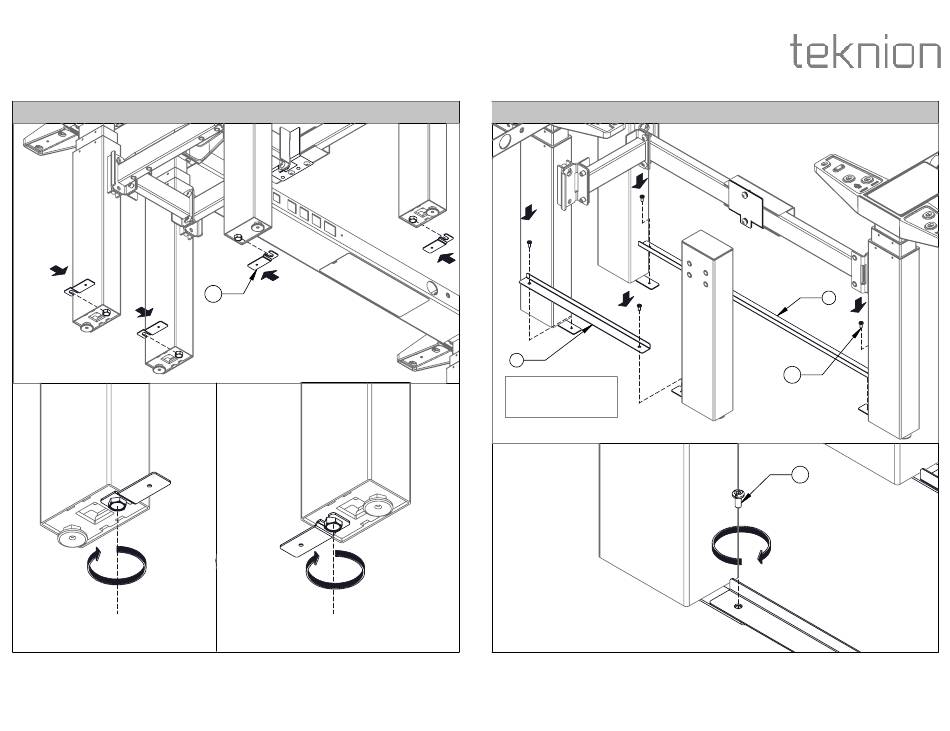

ATTACH CONNECTING PLATES
STEP 3: Loosen Hex Bolt to allow enough room for gable connecting Plate. Fasten Gable
Connecting plates to the Frame Legs. Secure the Gable Connecting Plates.
10
Installation Guides
MOUNT BOTTOM ANGLE BAR
9
NOTE: Parts of the
Frames are Hidden for
Illustration purpose.
STEP 4: Mount both Bottom Angle Bars and Secure to Gable Connecting Plates on both
sides using Tap Quad Pan Screws provided.
Date: Sept 2019 Page: 6 of 11
HABN_225g
8
24
24
