complements
Section:
H.A. TABLES
Description:
COMPLEMENTS NAVIGATE TABLE - ELECTRIC

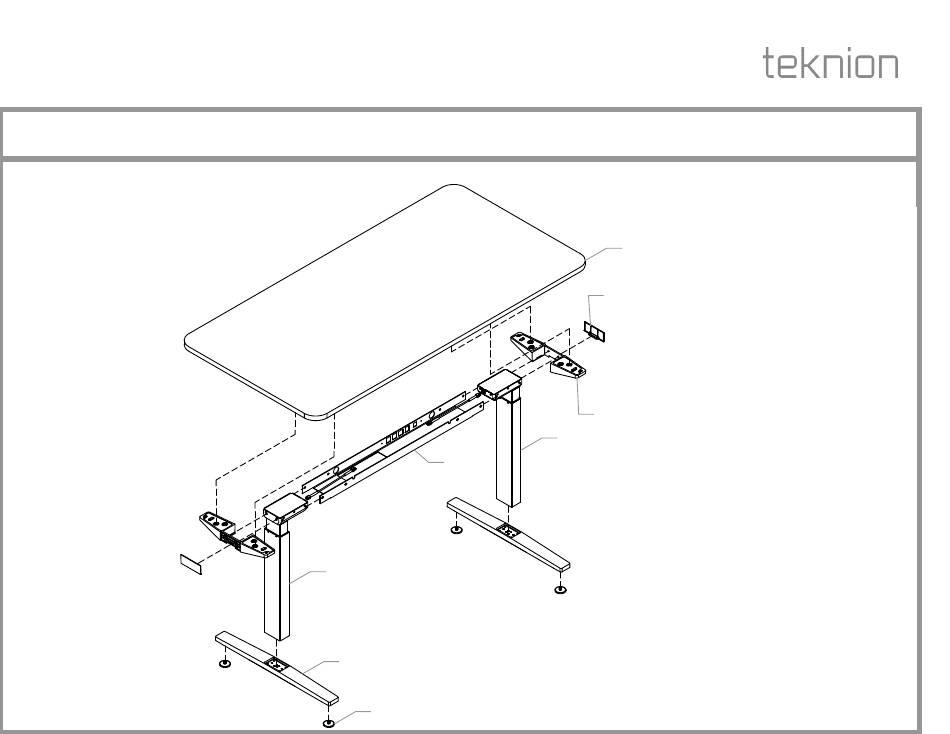

Navigate Height Adjustable - Electric (YAH_7 & YAH_9) & Worksurface for Navigate (WBH & WJH)
Installation Guides
G
C
B
J
A
F
E
D
Date:
May 2022
Page No:
1 of 10
COM_150b
Rev. No: 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the COMPLEMENTS NAVIGATE TABLE - ELECTRIC and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion COMPLEMENTS NAVIGATE TABLE - ELECTRIC

Summary of Contents for Teknion COMPLEMENTS NAVIGATE TABLE - ELECTRIC

  • Page 1 Installation Guides Section: H.A. TABLES Date: May 2022 Page No: 1 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b Rev. No: 5 Navigate Height Adjustable - Electric (YAH_7 & YAH_9) & Worksurface for Navigate (WBH & WJH)
  • Page 2 Section: H.A. TABLES Date: May 2022 Page No: 2 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b Rev. No: 5 Part and Product Identification M2 - #8 5/8" Screw M3 - 6x5/8 Screw M1 - Bracket M4 - 3/16" Wire Clamp...
  • Page 3 Date: May 2022 Page No: 3 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL H.A. LEGS SECURE H.A. LEGS STEP 1: Slide Height-Adjustable Legs onto the Cross Beam as shown above. STEP 2: Install Screws as shown above to secure Leg assembly.
  • Page 4 Section: H.A. TABLES Date: May 2022 Page No: 4 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL FOOT AND LEVEL INSTALL STRUT NOTE: The frame when dropped while flipping can cause damage to the internal mechanism. Hence, two...
  • Page 5 Section: H.A. TABLES Date: May 2022 Page No: 5 of10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL STRUT COVER INSTALL POWER BOX (OPTIONAL) NOTE: Follow step 6a and 6b to install Power Box with IEC outlet(N09-8737). STEP 5: Install Strut Cover using the Screws provided.
  • Page 6 Section: H.A. TABLES Date: May 2022 Page No: 6 of10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b SECURE POWER BOX (OPTIONAL) INSTALL POWER BOX COVER(OPTIONAL) NOTE: For No-Power Box option. NOTE: Follow step 6a and 6b to install Power Box with IEC outlet(N09-8737).
  • Page 7 Date: May 2022 Page No: 7 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL ELECTRIC WIRE NOTE: No-Power Box option is shown. STEP 8: Connect the Motor Cable and Power Cable, and Switch Cable to the legs and Motor Box as shown.

  • Page 8: Install Worksurface

    Date: May 2022 Page No: 8 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL WORKSURFACE NOTE: No Power Box option is shown. STEP 9: Install worksurface as shown above. Secure Frame Assembly, Switch and Control Box. then install Control Box Cover onto the Cross Beam.
  • Page 9 H.A. TABLES Date: May 2019 Page No: 9 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b INSTALL STRUT COVER INSTALL POWER BOX (OPTIONAL) NOTE: Position of the External Power Box is for reference only. It can be shifted as per user's preference.

  • Page 10: Wire Management

    Installation Guides Section: H.A. TABLES Date: May 2022 Page No: 10 of 10 Description: COMPLEMENTS NAVIGATE TABLE - ELECTRIC COM_150b WIRE MANAGEMENT NOTE: Place Wire Management as shown as diagram M6 - Cable Clamp M4 - Wire Clamp Right Hand Side...
