Summary of Contents for Teknion Navigate 120 HA Frame HNBFNT
Page 1

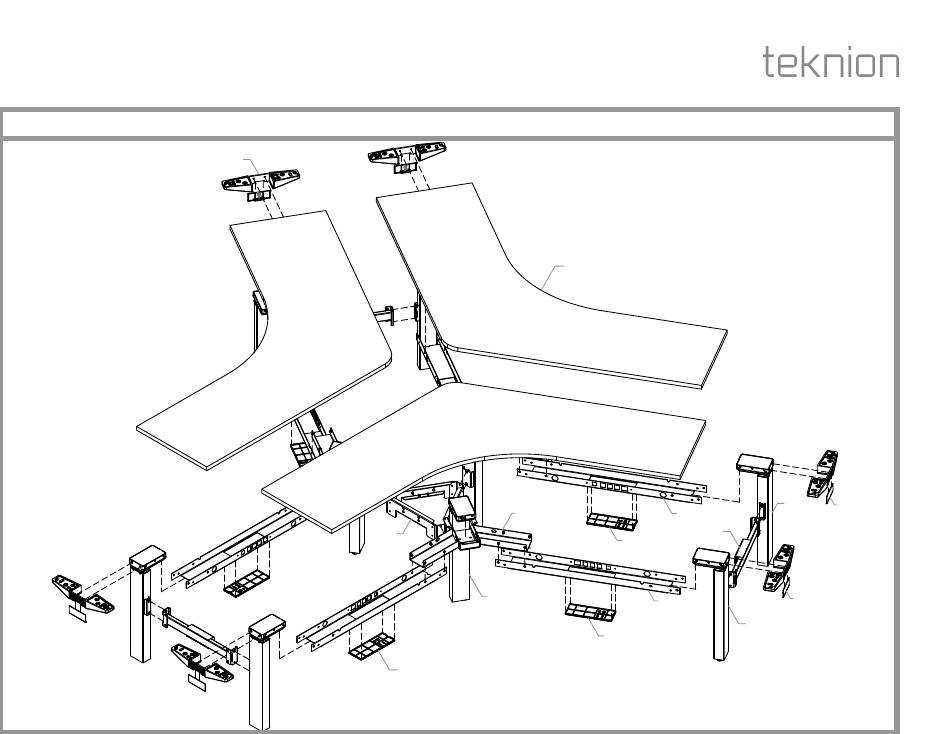

height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 1 of 18 Description: 120 HA FRAME HABN_123 Rev. No: 1 Navigate 120 HA Frame (HNBFNT) and Navigate 120 Worksurface (HNBWTN)
Page 2
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 2 of 18 Description: 120 HA FRAME HABN_123 Rev. No: 1 Parts & Products Indentification A - HAB Navigate 120 Frame (HNBFNT) x1 Frame Assm. Std Range Elec (N09-9008) x1 A1 - Navigate 120 HAB A8 - Navigate Strut Mid Gable Stratcher...
Page 3
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 3 of 18 Description: 120 HA FRAME HABN_123 Rev. No: 1 Part and Product Identification A19 - Plastic Tray Cable A18 - Cable Felt Organizer A20 - Plastic Tray Cable Management w/ IEC (N09-9781)x1 (YEYA01)x1 Management (YEYS01)x1...
Page 4
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 4 of 18 Description: 120 HA FRAME HABN_123 LEVELLER ADJUSTMENT ASSEMBLE LEG AND MID GABLE STRATCHER Hanger Plate A17c NOTE: For Mid Gable assembly, refer to HABN_224b. STEP 1: Adjust the Leveller to have a 0.5"...
Page 5
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 5 of 18 Description: 120 HA FRAME HABN_123 ATTACH POWER POLE MOUNT (OPTIONAL) ASSEMBLE CENTRE LEG TOP MOUNT A17b Power Pole Mount NOTE: For Power Pole assembly, refer to HABN_324.
Page 6
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 6 of 18 Description: 120 HA FRAME HABN_123 INSTALL CROSS BEAM A17b STEP 5: Place Cross Beam as shown. Secure the cross beam using the Screws provided.
Page 7
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 7 of 18 Description: 120 HA FRAME HABN_123 INSTALL LEG ASSEMBLIES A17b A17b STEP 6: Place Cross Beam into the cross beam. Secure the Leg assemblies using the screws provided.
Page 8
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 8 of 18 Description: 120 HA FRAME HABN_123 INSTALL STRETCHER WELDMENT A17c A17c STEP 7: Align Stretcher Weldment as as shown above. Assemble Stretcher weldment with screws provided.
Page 9
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 9 of 18 Description: 120 HA FRAME HABN_123 ALIGN LEGS NOTE: The Unit must be leveled at the exact location of NOTE: Use Laser Mark use. If moved after installation or initial leveling, follow tool to check alignment.
Page 10
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 10 of 18 Description: 120 HA FRAME HABN_123 ATTACH STRUTS TO FRAME A17b STEP 8: Attach the Struts to the Leg assemblies and Secure it using the Screws provided.
Page 11
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 11 of 18 Description: 120 HA FRAME HABN_123 ATTACH STRUT COVERS A17b STEP 9: Attach the Strut Covers and Secure it using the Screws provided.
Page 12
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 12 of 18 Description: 120 HA FRAME HABN_123 POWER MODULE (OPTIONAL) POWER MODULE COVER (OPTIONAL) A12a A12c A12b STEP 10a: Attach Power Module as shown above and Secure using the Screws provided. STEP 10b: Attach Power Module Cover as shown above and Secure using the screws provided.
Page 13
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 13 of 18 Description: 120 HA FRAME HABN_123 WIRE CONNECTION A12a A13c A13b A13a A17i A13c A13b NOTE: Plug IEC Connector from item A12a A12a into item A11 to power the actuator. A12a Dongle NOTE: Make sure that the Dongle...
Page 14
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 14 of 18 Description: 120 HA FRAME HABN_123 WORKSURFACE AND SWITCH-1 A17a NOTE: The Power Module wire has been Hidden for Illustration Purpose. A17l STEP 12: Place Worksurface on the Frame assembly and Fasten with Screws provided. Place the Switch under the Worksurface and Fasten with Screws provided.
Page 15
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 15 of 18 Description: 120 HA FRAME HABN_123 WORKSURFACE AND SWITCH-2 NOTE: Align Top and Side edges of all Worksurfaces. STEP 13: Align the Side edges and Top Surface with other Worksurfaces.
Page 16
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 16 of 18 Description: 120 HA FRAME HABN_123 WORKSURFACE AND SWITCH-3 A17m NOTE: The Power Module wire has been Hidden for Illustration Purpose. STEP 14: Fasten Worksurfaces with the Frame assembly.
Page 17
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 17 of 18 Description: 120 HA FRAME HABN_123 ATTACH CONTROL BOX COVER A17f NOTE: The Power Module wire has been Hidden for Illustration Purpose. STEP 15: Secure the Control Box to the Worksurfaces using the Screws provided. Then Attach the Control Box cover to the Cross Beam.
Page 18
height-adjustable bench Installation Guides Section: FRAMES AND WORKSURFACES Date: May 2022 Page No: 18 of 18 Description: 120 HA FRAME HABN_123 ATTACH FELT COVER CABLE ORGANIZER ATTACH DUAL PLASTIC TRAY CABLE MANAGEMENT NOTE: If YEYS is specified, NOTE: If YEYA is specified, refer refer to Complement Guide to Complement Guide COM_151a.
