Teknion Navigate height-adjustable bench Manual page 206

height-adjustable bench
Section: SCREENS & GABLES
ITEM
NO.
10
11
12
13
14
15
16
17
18
19

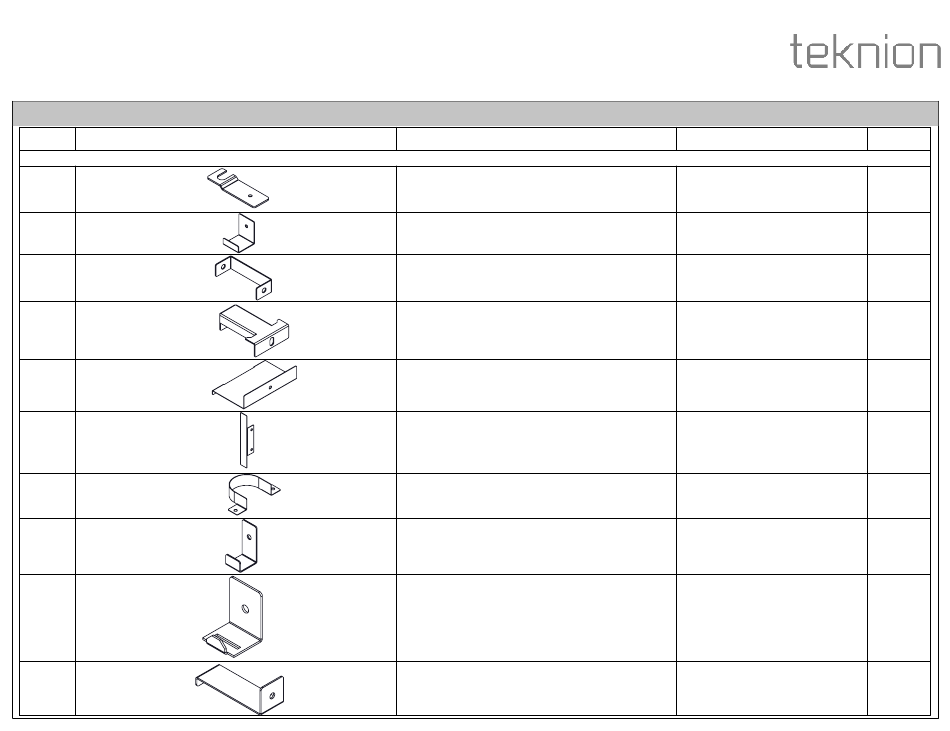

Part & Product Identification
PREVIEW
1. NAVIGATE TRANSITION MID GABLE, SOLID (HNBCGMSR)x1
Installation Guides
DESCRIPTION
GABEL CONNECTING PLATE
HANGING BRACKET, FOR WOOD MID GABLE,
HAB
BOTTOM CONNECTING BRKT ,WOOD MID
GABLE, HAB
FRONT HANGING BRKT FOR WOOD MID
GABLE, HAB
BOTTOM BRKT FOR WOOD MID GABLE, HAB
COVER PLATE FOR CABLE CUTOUT, HAB
COVER PLATE FOR BASEFEED CUTOUT, HAB
HANGING BRACKET, FOR SOLID TRANSITION
GABLE, HAB
HANGING BRACKET, FOR SOLID TRANSITION
GABLE, HAB
BOTTOM BRKT FOR WOOD TRANSITION
GABLE, HAB
Date: Sept 2019 Page: 3 of 11
HABN_225g
PART NUMBER QTY.
A16-3651 4
A16-3203 3
A16-3026 3
A16-3028 2
A16-3027 1
A16-3689 3
A16-3690 2
A16-7837 1
A16-7838 2
A16-7839 1
