Teknion Navigate height-adjustable bench Manual page 60

height-adjustable bench
Section: SCREENS AND GABLES

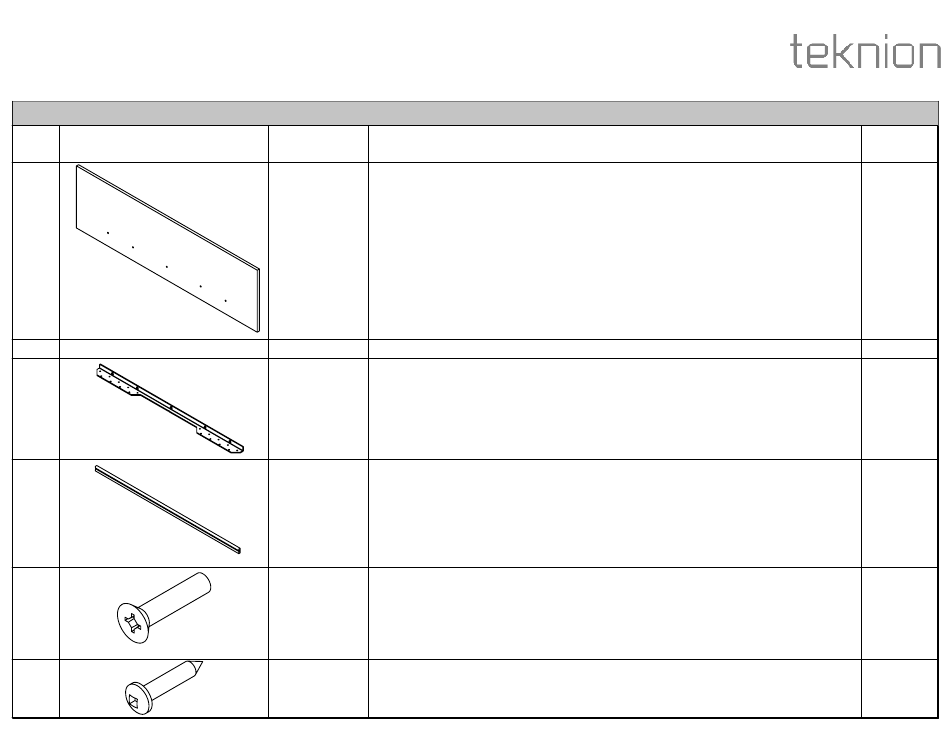

ITEM
ILLUSTRATION
NO.
1
2 N/A
2.1
2.2
2.3
2.4
Installation Guides
Part & Product Identification
PART
NUMBER
C05-8870-X
X06-0339-X SOLID DESK EDGE SCREEN MOUNTING KIT, HAB
A16-2959-X DESK EDGE SCREEN MOUNTING BRKT, HAB
N09-5045-X DESK EDGE SCREEN BAR-SUBASSEMBLY FOR WOOD, HAB
E01-0906 MACHINE SCREW, 1/4-20 X 1-1/8"L, FLAT, QUADREX, ZINC
E07-0097 #10 X 1", PAN, QUADREX WOOD SCREW,DEEP THREAD, ZINK
DESCRIPTION
DESK EDGE WOOD SCREEN, HAB
Date: May 2019 Page: 2 of 4
HABN_221b
QTY.
1
1
1
1
46": 10
52-58": 14
64-70": 18
76-82": 22
88": 26
94": 30
46-52": 3
58-64": 4
70-94": 5
