Section: ELECTRICS
INSTALL BRACKET TO POWER POLE
2.1
2.7

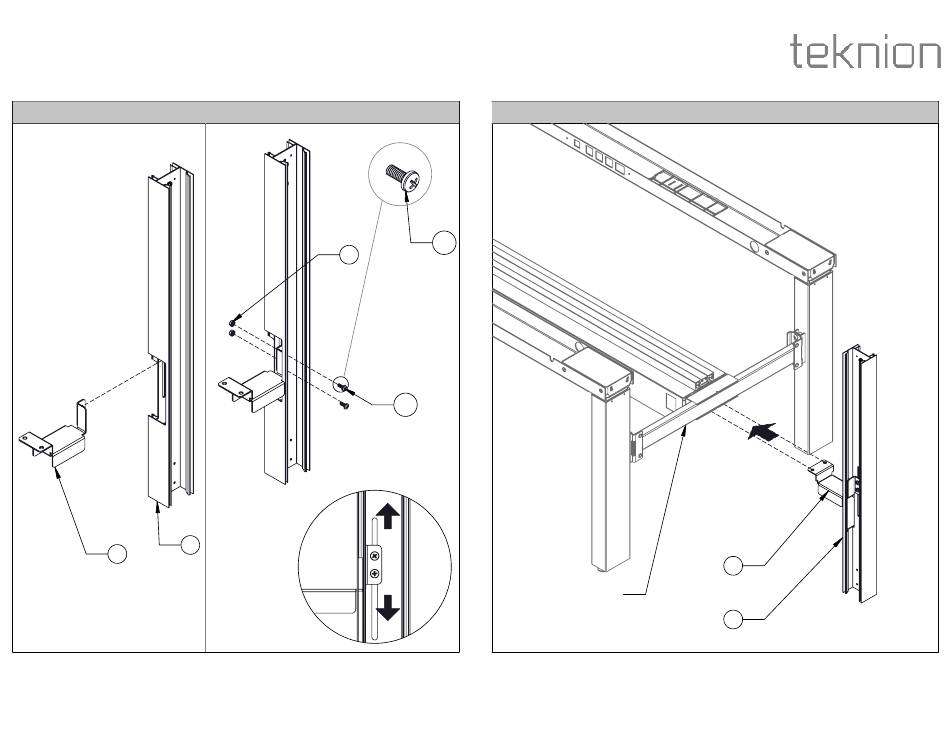

STEP 1:Fasten Bracket to Lower Power Pole Extrusion. Do not fully tighten as bracket needs
to slide up or down.
Installation Guides
2.10
2.9
2.10
(Do Not Fully Tighten)
HAB Frame Stretcher Bar
STEP 2: Bring Lower Power Pole Extrusion underneath Height Adjustable Bench (HAB)
Frame-Stretcher Bar.
ALLIGN LOWER POWER POLE TO HAB FRAME
Date: Sept 2019 Page: 3 of 9
HABN_322a
