height-adjustable bench
Section:
METAL GABLES & CABLE CHANNEL
CABLE CHANNEL ASSEMBLY

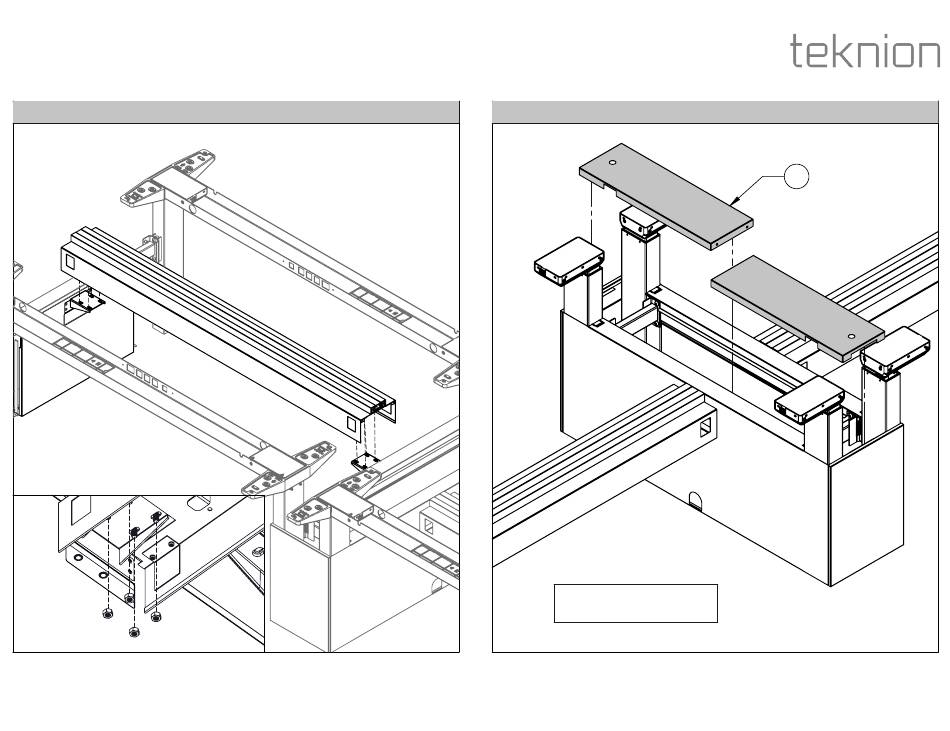

STEP 17: Align holes on Support Brackets, Cable Channel Assembly. Insert Bolts inside
Center Rail Extrusion through Cable Channel Assembly and Brackets as shown. Secure Cable
Channel in place with Nuts.
Installation Guides
NOTE: Parts of the Frames are
hidden for Illustration Purpose.
STEP 18: Attach Top Covers onto the highlighted extrusions on the Side and Front Cover
Assemblies.
Date: Feb 2022
HABN_223a
ATTACH TOP COVER
3.5
Page: 16 of 18
