Teknion Navigate height-adjustable bench Manual page 113

height-adjustable bench
Installation Guides
Date: Feb 2022 Page: 6 of 18
Section: SOLID GABLES & CABLE CHANNEL
HABN_223b
ATTACH GABLE SUPPORT BRACKET ATTACH SUPPORT BRACKET
2.2
2.4
2.1
2.3
1.3
2.3
2.5

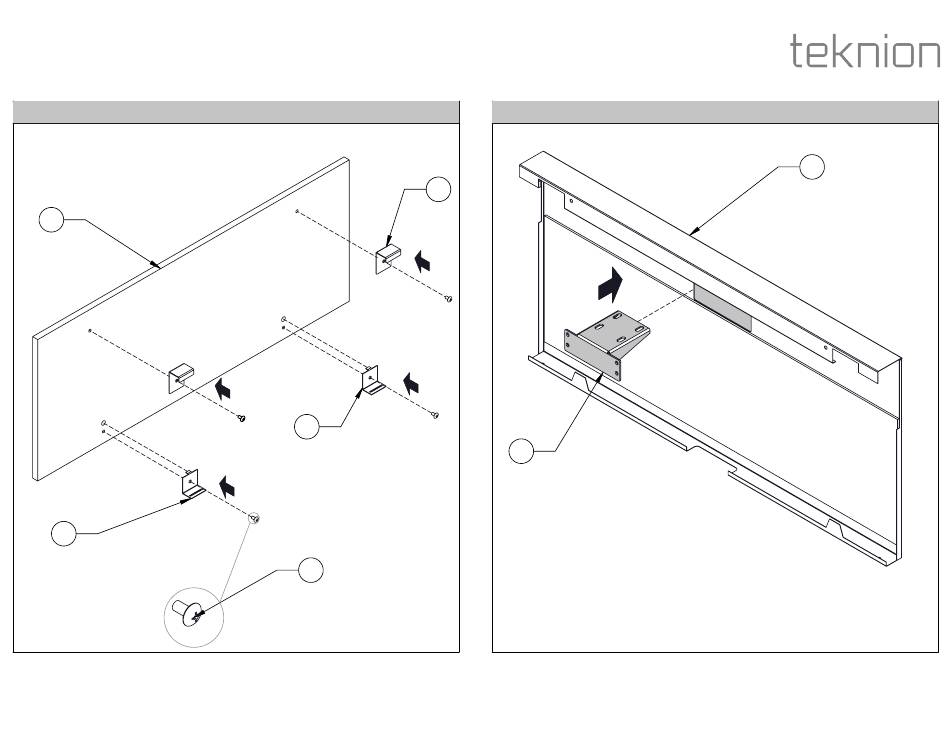

STEP 2: Attach and Fasten Gable Brackets. STEP 3: Insert Support Bracket through the cut-out on the Inside Cover Assembly as shown.
