Section: FRAMES AND WORKSURFACES
Description: 120 HA FRAME
A13c
A12a

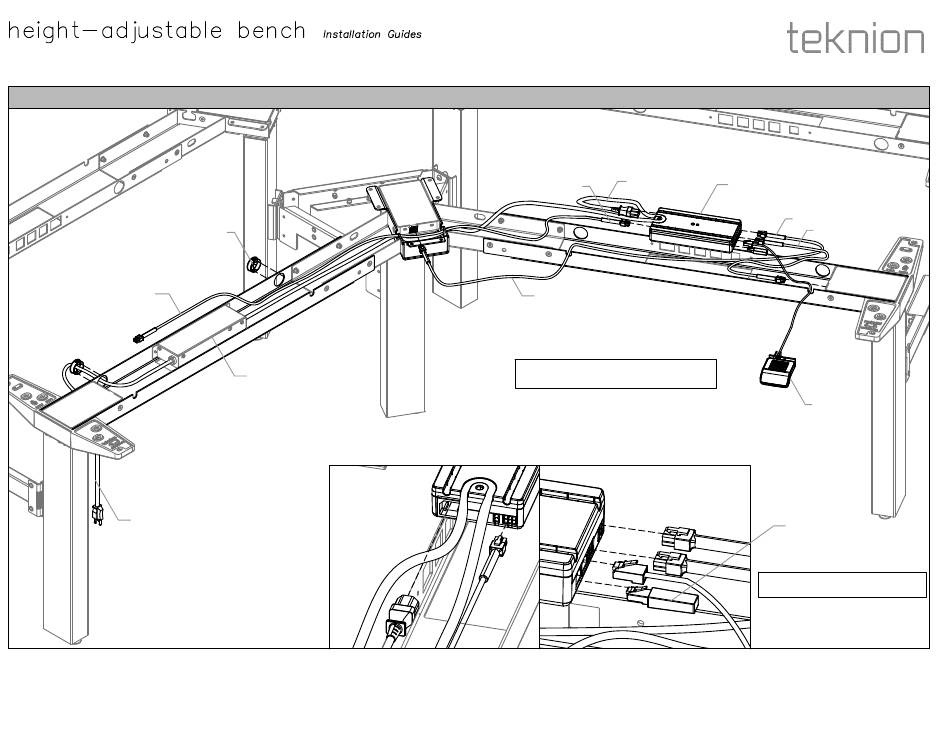

STEP 11: Connect all Wire as shown above.
NOTE: Plug IEC Connector from item A12a into item A11 to power the actuator.
WIRE CONNECTION
A17i
A12a
A12a
A13c
A13b
NOTE: Plug IEC Connector from item
A12a into item A11 to power the actuator.
Date: Jan 2024
Page No: 13 of 18
HABN_123
A11
A13b
A13a
A14
Dongle
NOTE: Make sure that the Dongle
is connected to the Control Box.
