height-adjustable bench
ELECTRICS
Section:
Description: NAVIGATE POWER POLE 120
A1 - Upper Power Pole Body
(AEA21-0200) x1
A2 - Lower Power Pole Body
(AEA21-0200) x1
A3 - Upper Power Pole Cover Cap
(AEA23-E014) x2
A4 - Lower Power Pole Cover Cap
(AEA23-E014) x2
Installation Guides

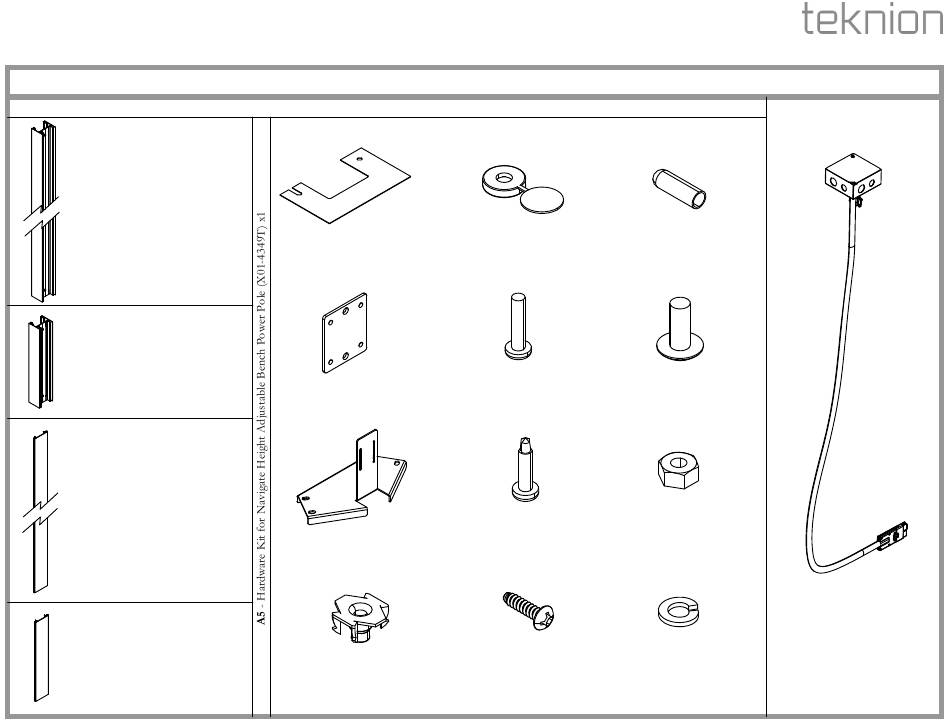

Part & Product Identification
A - Navigate Power Pole 120 (N09-8570) x1
A5a - Ceiling Plate for EPQE
(MPA15-2666) x2
A5b - Bracket to Extend Height
of Leverage Power Pole
(MPA15-E152) x1
A5c - Mounting Bracket 120 HNB
Power Pole
(MPA16-E042) x1
A5d - #8-32 x 7/16" 4 Prong
Tee Nut
(FN8-32X7-16T4) x2
A5i - Plastic Wire Cap
A5e - Snap Cap
(FM315-902) x2
A5j - 1/4 - 20 x 0.625 Screw
A5f - 8-32 x 0.750 Screw
(E01-0544) x2
A5g - 8-18 x 0.750 Screw
A5k - 1/4 - 20 Nut
(E01-0072) x2
A5h - 8 x 0.625 Screw A5l - Grip Washer
(F58-5/8RRB) x6
Date: Sep 2024
HABN_324
(PCAPLUG8) x4
(E01-0098) x4
(E03-0254) x4
B - Navigate Ceiling Feed
(HNBECF) x1
(FW1/4) x4
Page No: 2 of 7
Rev. No: 1
