Teknion Navigate Mid Gable-Solid Installation Manuals

Height-adjustable bench

Advertisement

Quick Links

height-adjustable bench
Installation Guides
Date: May 2020
Page: 1 of 18
Section:
SOLID GABLES & CABLE CHANNEL
HABN_223b
Rev.01

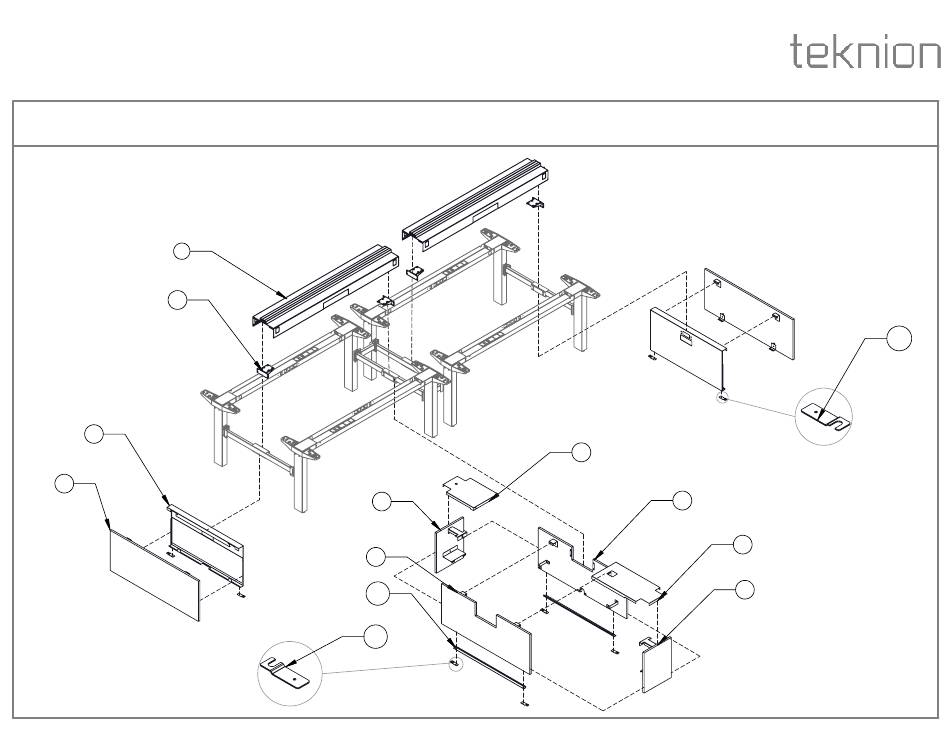

Navigate Mid Gable - Solid (HNBCGMSN), Navigate Cable Channel (HNBFCN), Navigate End Gable - Solid
(HNBCGESN)
1
1.3
2.7
2.2
3.4
2.1
3.1
3.3
3.4
3.2
3.3
3.10
3.11

Advertisement

loading
Need help?

Need help?

Do you have a question about the Navigate Mid Gable-Solid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Teknion Navigate Mid Gable-Solid

  • Page 1 height-adjustable bench Installation Guides Date: May 2020 Page: 1 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b Rev.01 Navigate Mid Gable - Solid (HNBCGMSN), Navigate Cable Channel (HNBFCN), Navigate End Gable - Solid (HNBCGESN) 3.10 3.11...
  • Page 2 height-adjustable bench Installation Guides Date: May 2020 Page: 2 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION QTY. PREVIEW DESCRIPTION QTY. NUMBER NUMBER 1. Navigate Wire Channel (HNBFCN) x1 1/4-20X5/8"...
  • Page 3 height-adjustable bench Installation Guides Date: May 2020 Page: 3 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION PREVIEW DESCRIPTION NUMBER NUMBER 2. Navigate End Gable - Solid (HNBCGESN) x1 1/4-20 UNCx0.500"...
  • Page 4 height-adjustable bench Installation Guides Date: May 2020 Page: 4 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION QTY. PREVIEW DESCRIPTION QTY. NUMBER NUMBER 3. Navigate Mid Gable - Solid - Mid Condition (HNBCGMSN) x1 FRONT HANGING BRKT FOR WOOD MID GABLE, A16-3028...
  • Page 5 height-adjustable bench Installation Guides Date: May 2020 Page: 5 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b REMOVE SUPPORT BRACKETS STEP 1: Remove Support Brackets.
  • Page 6 height-adjustable bench Installation Guides Date: May 2020 Page: 6 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH GABLE SUPPORT BRACKET ATTACH SUPPORT BRACKET STEP 2: Attach and Fasten Gable Brackets. STEP 3: Insert Support Bracket through the cut-out on the Inside Cover Assembly as shown.
  • Page 7 height-adjustable bench Installation Guides Date: May 2020 Page: 7 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH CONNECTING PLATES TO FRAME LEGS MOUNT INSIDE COVER ASSEMBLY NOTE: Parts of the Frame are hidden for Illustration Purpose. Leveler Leg Hex Bolt STEP 4: Loosen Legs Hex Bolt on both Legs to allow enough clearance for gable connecting STEP 5: Mount Inside Cover Assembly onto Frame Stretcher Bar.
  • Page 8 height-adjustable bench Installation Guides Date: May 2020 Page: 8 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b SECURE INSIDE COVER IN PLACE SECURE INSIDE COVER ASSEMBLY TO FRAME STEP 6: Make sure the face of the Inside Cover Assembly is flush with the Leg. Secure Inside STEP 7: Secure Inside Cover Assembly to Stretcher Bar with Bolts.
  • Page 9 height-adjustable bench Installation Guides Date: May 2020 Page: 9 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b MOUNT OUTSIDE COVER ASSEMBLY NOTE: Parts of the Frame are hidden for Illustration Purpose. Section View Section View STEP 8:Mount Outside Cover Assembly to the highlighted part of the Inside Cover Assembly as shown.
  • Page 10 height-adjustable bench Installation Guides Date: May 2020 Page: 10 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH CONNECTING PLATES TO FRAME Leg Hex Bolt 3.11 STEP 9: Loosen Hex Bolt to allow enough room for Gable Connecting Plate. Fasten Gable Connecting Plates to Frame Legs.
  • Page 11 height-adjustable bench Installation Guides Date: May 2020 Page: 11 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b MOUNT BOTTOM ANGLE BAR MID POWER POLE SUPPORT PLATE 3.12 3.10 Connecting Bracket 3.10 Hex Bolt 5/16" x1" Long ZP NOTE: Refer to installation Underside View 3.12 guide HAB_322b for detail.
  • Page 12 height-adjustable bench Installation Guides Date: May 2020 Page: 12 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH MID GABLE SUPPORT BRACKET MOUNT SIDE COVER ASSEMBLY NOTE: Parts of the Frame are hidden for Illustration Purpose. 3.14 3.15 3.13 NOTE: Please Refer to Specificstion Drawing to mount the correct side Cover Assembly.
  • Page 13 height-adjustable bench Installation Guides Date: May 2020 Page: 13 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b SECURE SIDE COVER ASSEMBLY CABLE CHANNEL ASSEMBLY NOTE:Install Cable Channel Cover Plate on Cable Channel Where E-Chain is not specified or unused location. NOTE: Electrics are not included with the Cable Channel.
  • Page 14 height-adjustable bench Installation Guides Date: May 2020 Page: 14 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH CABLE CHANNEL & CENTER RAIL SECURE CABLE CHANNEL Underside View NOTE: Electrics Components to be installed on Cable Channel before connecting to support Bracket.
  • Page 15 height-adjustable bench Installation Guides Date: May 2020 Page: 15 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b MOUNT FRONT COVER ASSEMBLY Sectrion View STEP 16: Mount Front Covers onto the Frame Link and Bottom connecting Brackets.
  • Page 16 height-adjustable bench Installation Guides Date: May 2020 Page: 16 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b TOP COVER W/ POWER POLE CUTOUT (OPTIONAL) NOTE: Parts of the Frames are hidden for Illustartion Pupose. NOTE: Parts of the Frames are hidden for Illustartion Pupose.
  • Page 17 height-adjustable bench Installation Guides Date: May 2020 Page: 17 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b ATTACH TOP COVER NOTE: Parts of the Frames are Hidden for Illustration Purpose. 3.16 STEP 17b: Rest Top Covers onto Gable structures as Shown.
  • Page 18 height-adjustable bench Installation Guides Date: May 2020 Page: 18 of 18 Section: SOLID GABLES & CABLE CHANNEL HABN_223b CENTER RAIL EXTRUSION CAP STEP 18: Insert Center Rail Extrusion Caps onto Center Rail Extrusion as Shown.
