Teknion Navigate height-adjustable bench Manual page 27

Section: FRAMES AND WORKSURFACES
Description: 120 HA FRAME
ATTACH POWER POLE MOUNT (OPTIONAL)
Power Pole
Mount
NOTE: For Power Pole assembly,
refer to HABN_324.

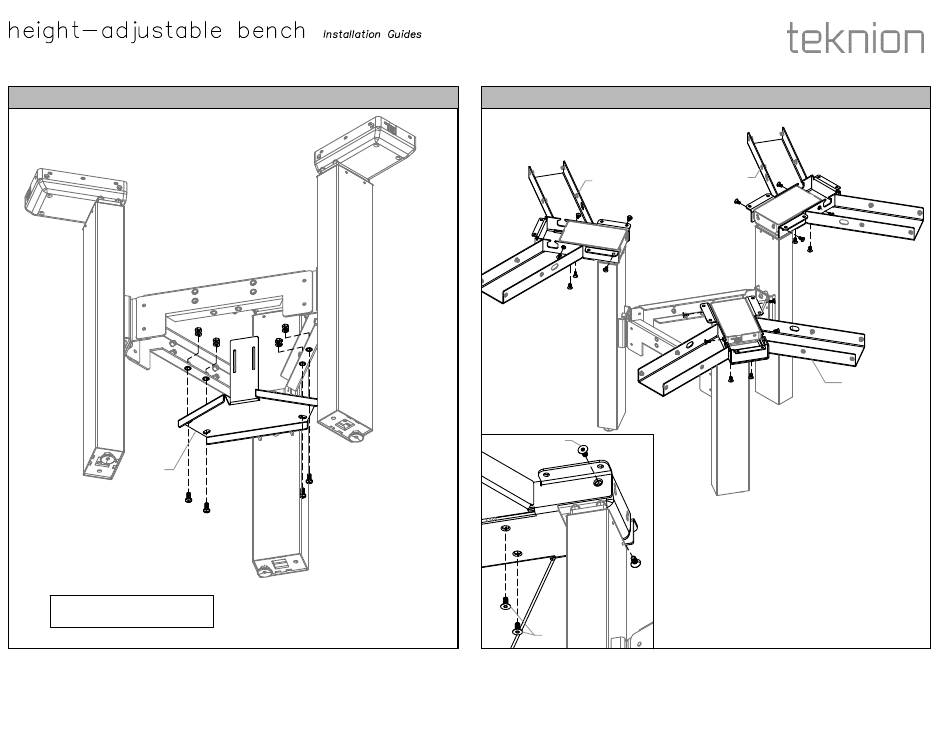

STEP 3: Attach Power pole mount as shown above with screws and washers provided.
ASSEMBLE CENTRE LEG TOP MOUNT
A3
A17b
A17b
STEP 4: Assemble Centre Top mount with screws provided.
Date: Jan 2024
Page No: 5 of 18
HABN_123
A3
A3
