Description: NAVIGATE POWER POLE 120
ATTACH UPPER EXTRUSION
A1
A2

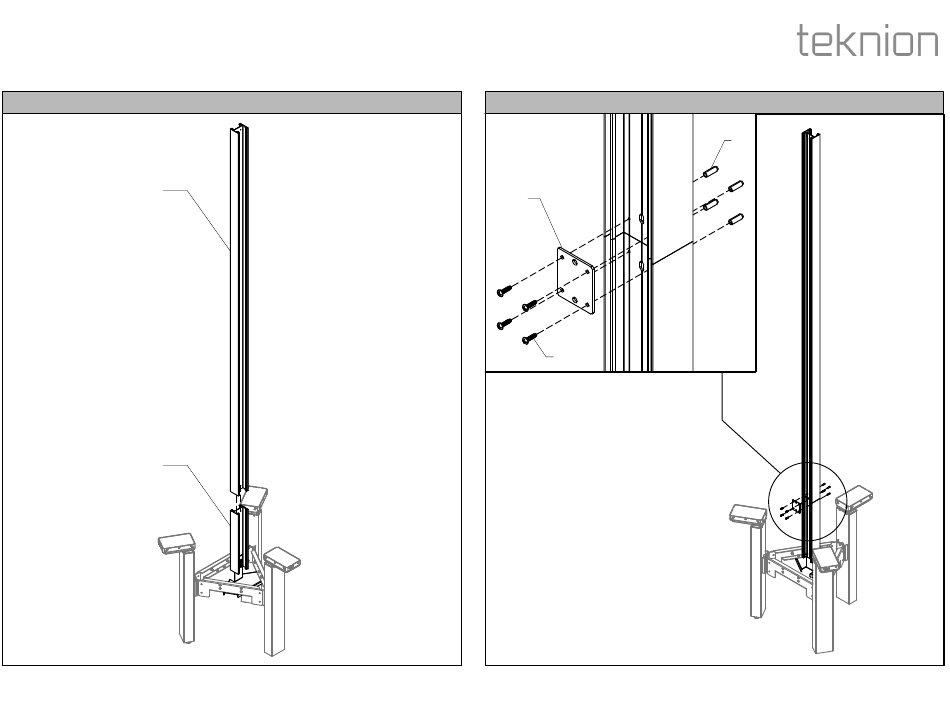

STEP 3: Insert Upper Power Pole Extrusion inside ceiling cut-out (uncut edge down). Drop
Power Pol Upper Extrusion on the top of the Lower Extrusion.
Installation Guides
A5b
A5h
STEP 4: Connect Upper and Lower Extrusion together using Connection Plate Screws.
Date:
HABN_324
FASTEN SCREWS
A5i
Sep 2024
Page No: 4 of 7
