Teknion Navigate height-adjustable bench Manual page 202

height-adjustable bench
Section: METAL GABLES & CABLE CHANNEL

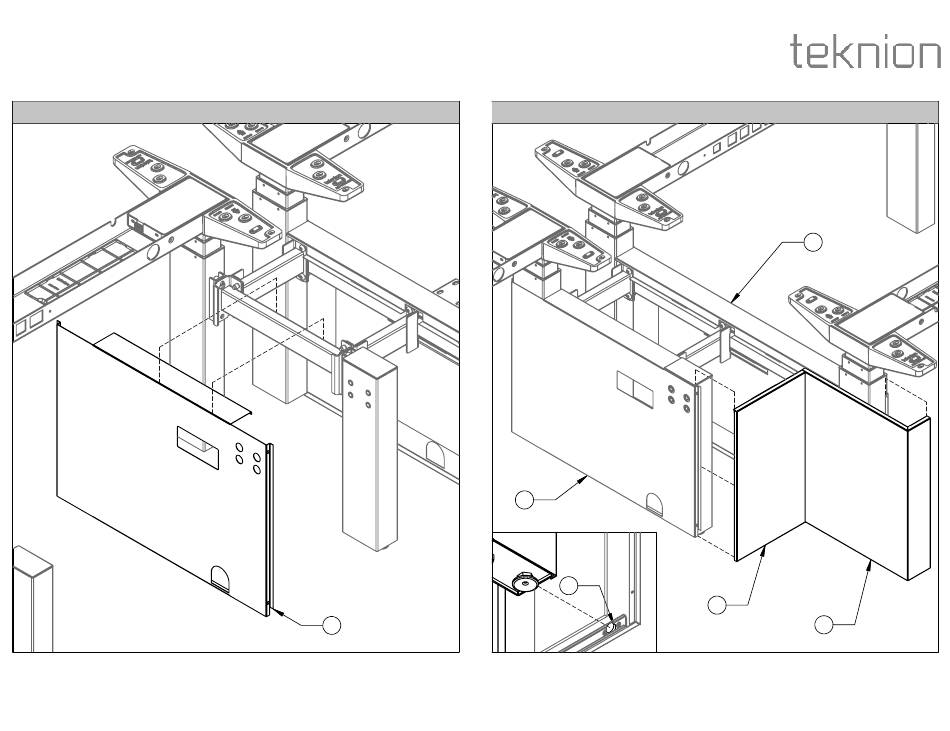

ATTACH SIDE COVER
STEP 5: Hook Side Cover over stretcher bar on Single-Sided Frame.
Installation Guides
2
STEP 6: Hook Back Cover assembly over the corners of rhe Side Covers. The magnet should
stick to the leg of the Single-Sided Frame.
INSTALL BACK COVER
2
9
Date: Sept 2019 Page: 5 of 6
HABN_225f
1
5
3
Rev. 00
