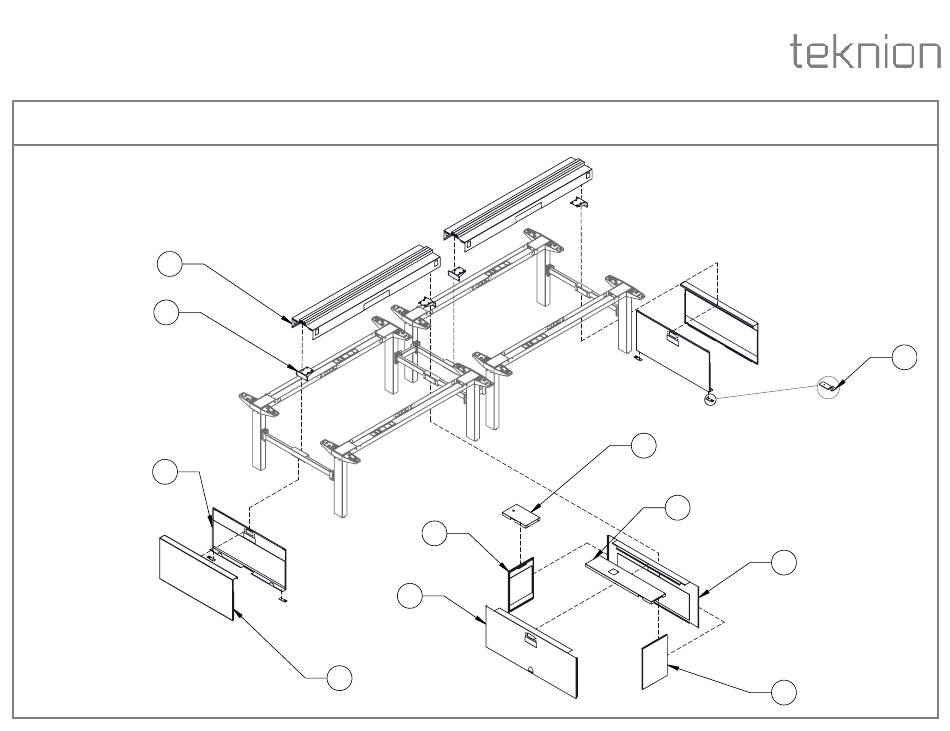

height-adjustable bench
Section:
METAL GABLES & CABLE CHANNEL
Navigate End Gable - Metal (HNBCGEMN), Navigate Mid Gable - Metal (HNBCGMMN), Navigate Cable Channel
1
1.3
2.3
Installation Guides
(HNBFCN)
3.4
3.2
2.2
Date: May 2020
HABN_223a
3.1
3.1
3.3
3.4
Page: 1 of 18
Rev. 01
2.4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion Height-adjustable bench
Summary of Contents for Teknion Height-adjustable bench
- Page 1 Installation Guides Date: May 2020 Page: 1 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a Rev. 01 Navigate End Gable - Metal (HNBCGEMN), Navigate Mid Gable - Metal (HNBCGMMN), Navigate Cable Channel (HNBFCN)
- Page 2 Installation Guides Date: May 2020 Page: 2 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION PREVIEW DESCRIPTION NUMBER NUMBER 1. Navigate Wire Channel (HNBFCN) x1 5/16-18 HEX...
- Page 3 Installation Guides Date: May 2020 Page: 3 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION QTY. PREVIEW DESCRIPTION QTY. NUMBER NUMBER 3. Navigate Mid Gable - Metal (HNBCGMMN) x1 2.
- Page 4 Installation Guides Date: May 2020 Page: 4 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a REMOVE SUPPORT BRACKETS NOTE: Make sure the Bolts do not come out of the assembly. STEP 1: Remove Support Brackets.
- Page 5 Installation Guides Date: May 2020 Page: 5 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a APPLY FOAM RUBBERS ATTACH SUPPORT BRACKET STEP 2: Attach Foam Rubbers onto the centre of the Table Legs' inner side. STEP 3: Insert Support Bracket through the cut-out on the Inside Cover Assembly as shown.
- Page 6 Installation Guides Date: May 2020 Page: 6 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a ATTACH CONNECTING PLATES TO FRAME LEGS MOUNT INSIDE COVER NOTE: Parts of the Frames are hidden for Illustration Purpose. Stretcher STEP 4: Loosen Legs Hex Bolt on both Legs to allow enought clearance for gable connecting STEP 5: Mount Inside Cover Assembly onto Frame Stretcher Bar.
- Page 7 Installation Guides Date: May 2020 Page: 7 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a SECURE INSIDE COVER ASSEMBLY TO FRAME FASTEN INSIDE COVER IN PLACE STEP 6: Secure Inside Cover Assembly to Stretcher Bar with Bolts.
- Page 8 Installation Guides Date: May 2020 Page: 8 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a MOUNT OUTSIDE COVER ASSEMBLY Opposite side view STEP 8:Mount Outside Cover Assembly to the highlighted part of the Inside Cover Assembly as shown.
- Page 9 Installation Guides Date: May 2020 Page: 9 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a MID POWER POLE SUPPORT PLATE (OPTIONAL) NOTE:Please refer to installation guide HAB_322b. Connecting Bracket 1/4-2, 5/8" Long Screw NOTE: Cable Channels are Hidden for Illustration Purpose.
- Page 10 Installation Guides Date: May 2020 Page: 10 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a ATTACH SUPPORT BRACKET SCREEN AND GABLES NOTE: Parts of the Frames are NOTE: Please refer to Specification Drawing hidden for Illustration Purpose.
- Page 11 Installation Guides Date: May 2020 Page: 11 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a SECURE SIDE COVER ASSEMBLY CABLE CHANNEL ASSEMBLY NOTE:Install Cable Channel Cover Plate on Cable Channel Where E-Chain is not specified or unused location.
- Page 12 Installation Guides Date: May 2020 Page: 12 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a ATTACH CABLE CHANNEL & CENTER RAIL SECURE CABLE CHANNEL Underside View STEP 12: Align holes on Support Brackets, Cable Channel Assembly. Insert Bolts inside STEP 13: Secure Cable Channel in place with Nuts.
- Page 13 Installation Guides Date: May 2020 Page: 13 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a ATTACH SUPPORT BRACKET MOUNT SIDE COVER ASSEMBLY STEP 14: Insert Support Bracket through the cut-out on the Side Cover Assembly. STEP 15: Mount Side Cover Assembly onto the Stretcher Bar as shown.
- Page 14 Installation Guides Date: May 2020 Page: 14 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a SECURE SIDE COVER ASSEMBLY ATTACH MAGNET NOTE: Attach Magnets approximately to the locations to the legs NOTE: Parts of the Frame are hidden for Illustration Purpose.
- Page 15 Installation Guides Date: May 2020 Page: 15 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a MOUNT FRONT COVER ASSEMBLIES NOTE: Legs are Hidden for Illustration Purpose. NOTE: Make sure Magnets are attached to the Legs. STEP 18: Mount Front Covers onto the Side Covers as shown in Detail View. Repeat this on the other side as well.
- Page 16 Installation Guides Date: May 2020 Page: 16 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a CABLE CHANNEL ASSEMBLY ATTACH TOP COVER NOTE: Parts of the Frames are hidden for Illustration Purpose. STEP 19: Align holes on Support Brackets, Cable Channel Assembly. Insert Bolts inside STEP 20: Attach Top Covers onto the highlighted extrusions on the Side and Front Cover Center Rail Extrusion through Cable Channel Assembly and Brackets as shown.
- Page 17 Installation Guides Date: May 2020 Page: 17 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a TOP COVER WITH POWER POLE COUTOUT (OPTIONAL) NOTE: Only when Power Pole option is selected. STEP 21: If Mid gable Power Pole is Specified, attach Top Covers onto the hightlighted extrusions on the Side and Front Cover Assemblies as shown.
- Page 18 Installation Guides Date: May 2020 Page: 18 of 18 Section: METAL GABLES & CABLE CHANNEL HABN_223a CENTER RAIL EXTRUSION CAP STEP 22: Insert Center Rail Extrusion Caps onto Center Rail Extrusion as Shown.
