Teknion District Series Installation Manual

Panel walls

Advertisement

district
Section:
Description:

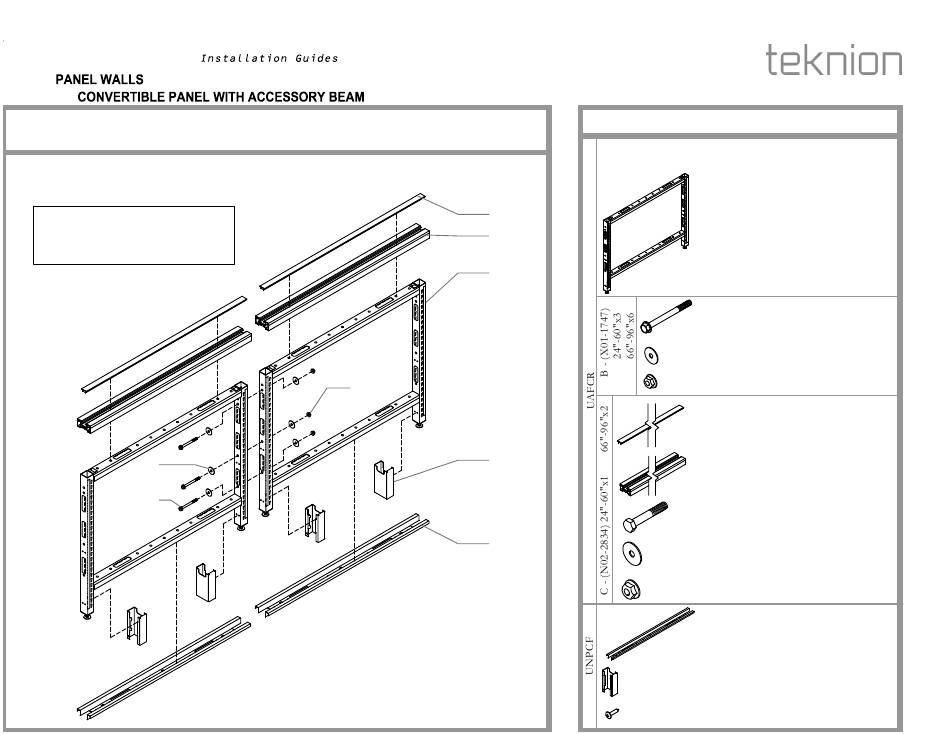

Convertible Panel Wall with Accessory Beam (UAFCR) &
Convertible Panel Wall Base and Foot Trim (UNPCF)
NOTE: 72" Convertible Panel Wall with
Accessory Beam (UAFCR) & Convertible
Panel Wall Base and Foot Trim (UNPCF)
shown as an example
B2
B1
C1
C2
A
B3
D2
D1
For Customer Support please contact
product.support@teknion.com
Date:
Dec 2015
DIS_102b_G01
Part and Product Identification
A - Convertible Panel Frame Assembly
(N02-1553) 24"-60"x1
B1 - Hex Flange Locking Bolt
5/16-18x3.5-in Long Plate
(E03-0430) x1
B2 - Flat Washer
(E03-0457) x2
B3 - 5/16-18 Lock Nut Zinc Plate
(E03-0437) x1
C1 - Center Rail Extrusion Cap
(A23-4058) x1
C2 - Center Rail
(A23-4840) x1
C3 - 5/16-18x2 Hex Cap Screw Grade 2
(A23-4840)
24"-35"x2
36"-60"x4
C4 - Flat Washer
(E03-0457)
24"-35"x2
36"-60"x4
C5 - 5/16-18x2 Lock Nut Zinc Plate
(E03-0437)
24"-35"x2
36"-60"x4
D1 - Base Trim
(A15-8542) 24"-60"x1
D2 - Elevated Foot
(A15-8546) 24"-60"x2
D3 - #12x1"Long, Type AB, Truss Head,
Tapping Screw, Black
(E07-0050) 24"-60"x3
Page No:
1 of 5
Rev. No: 2
66"-96"x2
62"-96"x6
62"-96"x6
62"-96"x6
62"-96"x2
62"-96"x4
62"-96"x6
