Teknion Navigate height-adjustable bench Manual page 150

height-adjustable bench
Section: SCREENS AND GABLES
ITEM
PREVIEW
NO.

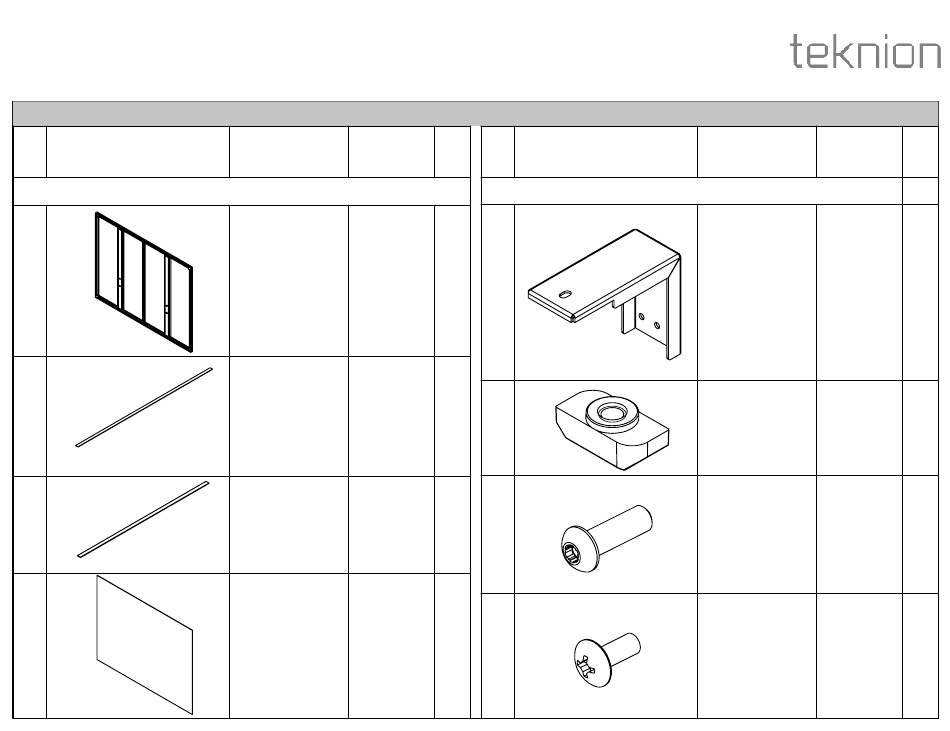

1. NAVIGATE SINGLE SIDED CORRIDOR SCREEN - FABRIC (HNBLSF)
1.1
1.2
1.3
1.4
Part & Product Identification
PART
DESCRIPTION
NUMBER
FRAME ASSY
FRAMED FABRIC N03-
FLOOR SCREEN SS 3067\42\54
HAB CORRIDOR
TOP TRIM CUT
SIZES - FABRIC A23-6540-X
SCREEN
VERTICAL TRIM
CUT SIZES -
A23-7431-X
NAVIGATE END OF
RUN SCREEN
FABRIC &
SUBSTRATE ASSY - N03-
NAVIGATE FLOOR 3045\42\54
SCREEN
Installation Guides
ITEM
QTY. PREVIEW
NO.
1.5. FABRIC CORRIDOR SCREEN MOUNTING BRKT KIT, HAB (X06-0619)
1
1.5.1
1
1.5.2
2
1.5.3
2
1.5.4
Date: Sept 2019
HABN_224
PART
DESCRIPTION
NUMBER
CORRIDOR SCREEN
A16-7801
BRKT, HAB
MOUNTING NUT A25-0386
5/16"-18 x 1"
SOCKET BUTTON E01-0651
HEAD SCREW
1/4-20X5/8" MACH
SCR, BLACK, E01-0113
QUAD,TRUSS
Page: 2 of 8
QTY.
2
1
1
1
2
