Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
SLIDING WORKSURFACE KIT, SLIDING WORKSURFACE AND FRAME - DOUBLE SIDED
Sliding Worksurface Kit (WWSSL), Sliding Worksurface (WWWRS)
NOTE: The Cantilevers
included in the Double
Sided Frame Assembly
(A16-4882\12) are not
required for this
application.
C1
C2
Angled Leg Frame shown

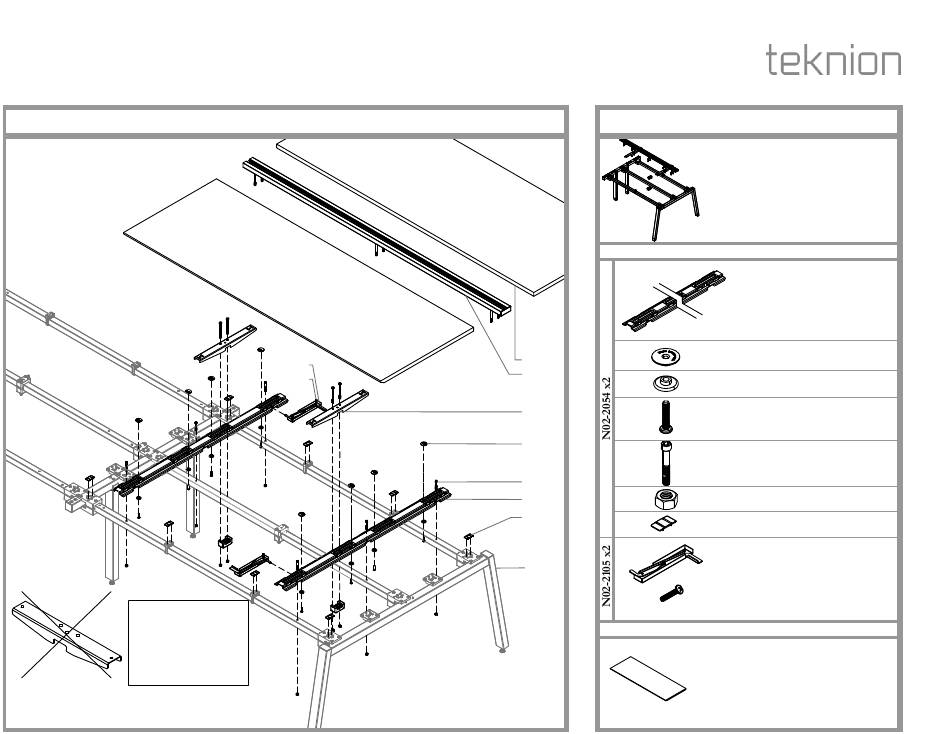

Part and Product Identification

E
A
A
B2
B5
B1
B7
A
Date:
Sept 2017
Page No:
1 of 10
INT_005a
Rev. No: 4
A - Double Sided Frame - type and
quantities as per order
WWSSLD
B1 - Sliding Worksurface Track
(A16-4964) x 1
B2 - Sliding Bushing
(B02-0377) x4
B3 - Disengagement Washer
(B02-0378) x4
B4 - 1/4 - 20 X 1.25 Pan Head,
Quadrex, Screw
(E01-0182) x4
B5 - 5/16-18X2 Long, Socket Head,
Cap Screw
(E01-0764) x3 or x5
B6 - 5/16-18X1/2 Hex Nut, AF, .265
Nut (E01-0755) x3
B7 - Sliding Worksurface Standoff
(B02-0383) x3
C1 - Sliding Worksurface Lock
Assembly (N02-2105) x1
C2 - 1/4-20X30mm Murakoshi Bolt
(E03-0444) x2
WWWRS
E - Sliding Worksurface
(WWWRS) x2 per Frame
