4. Ensure that wires are correctly routed
through BSA cable router. Feed up CU and
BSA harnesses through holes in cover. See
Figure 10‐2.

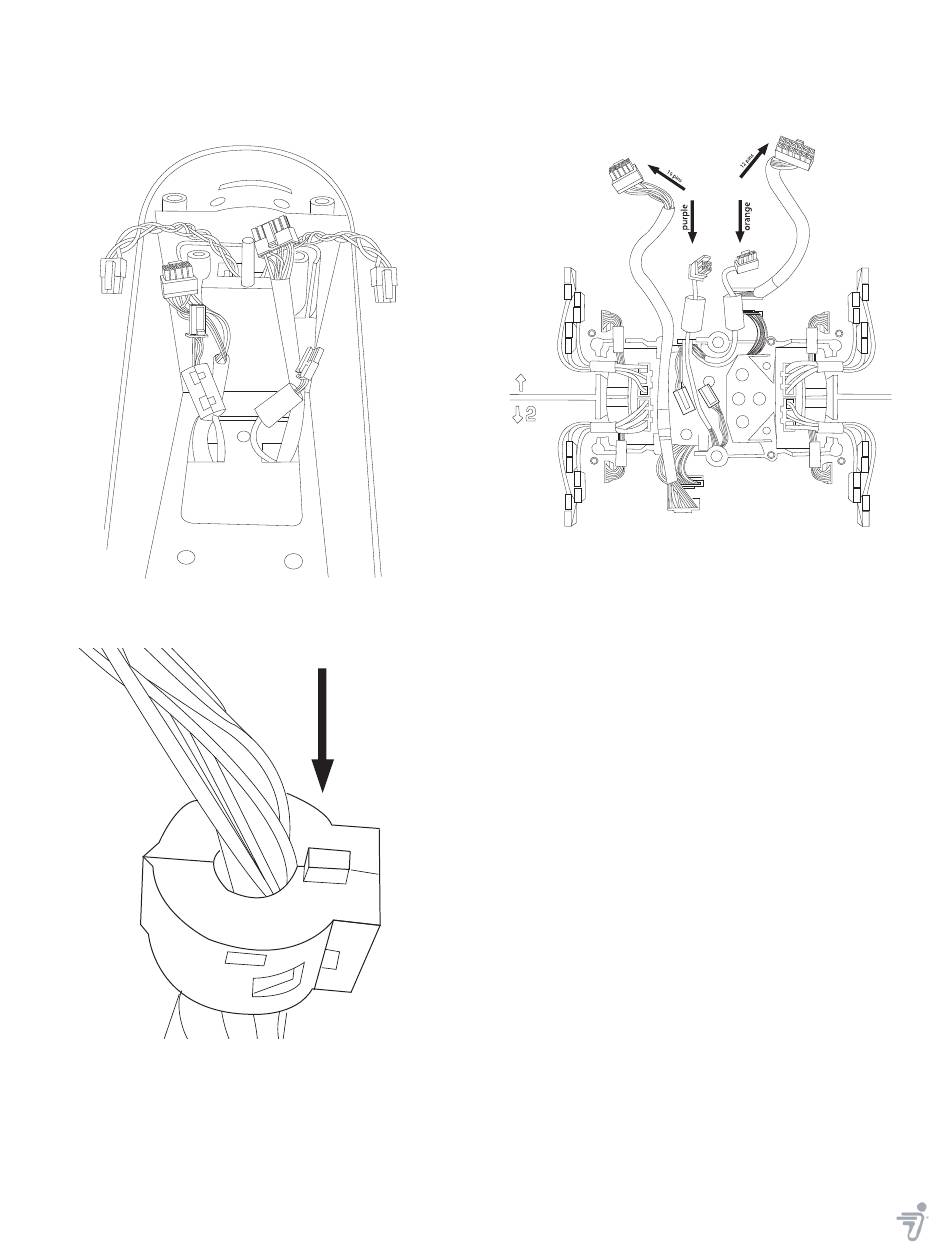

Figure 10‐2: BSA Cable Orientation
5. Reinstall ferrite cores. See Figure 10‐3..
Figure 10‐3: Ferrite Core
6. Viewing from the rear of the chassis, the
cable connections should be as follows:
• Left side: 10‐pin connector and a
smaller connector with purple wires.
10‐4
• Right side: 12‐pin connector and a
smaller connector with orange wires.
See Figure 10‐4.
Figure 10‐4: Cable Connections
7. Install cover and thread (12) new BHCS, M6
x 1.0 5x14, 6‐lobe screws (20540‐00001)
through chassis cover into chassis. See
Figure 10‐1.
8. Using a T‐27 6‐lobe wrench, drive each
screw and torque to 6.0 N‐m.
9. Perform post‐service tests (page A‐1).
