Segway Personal Transporter i2 Parts Replacement Manual page 69

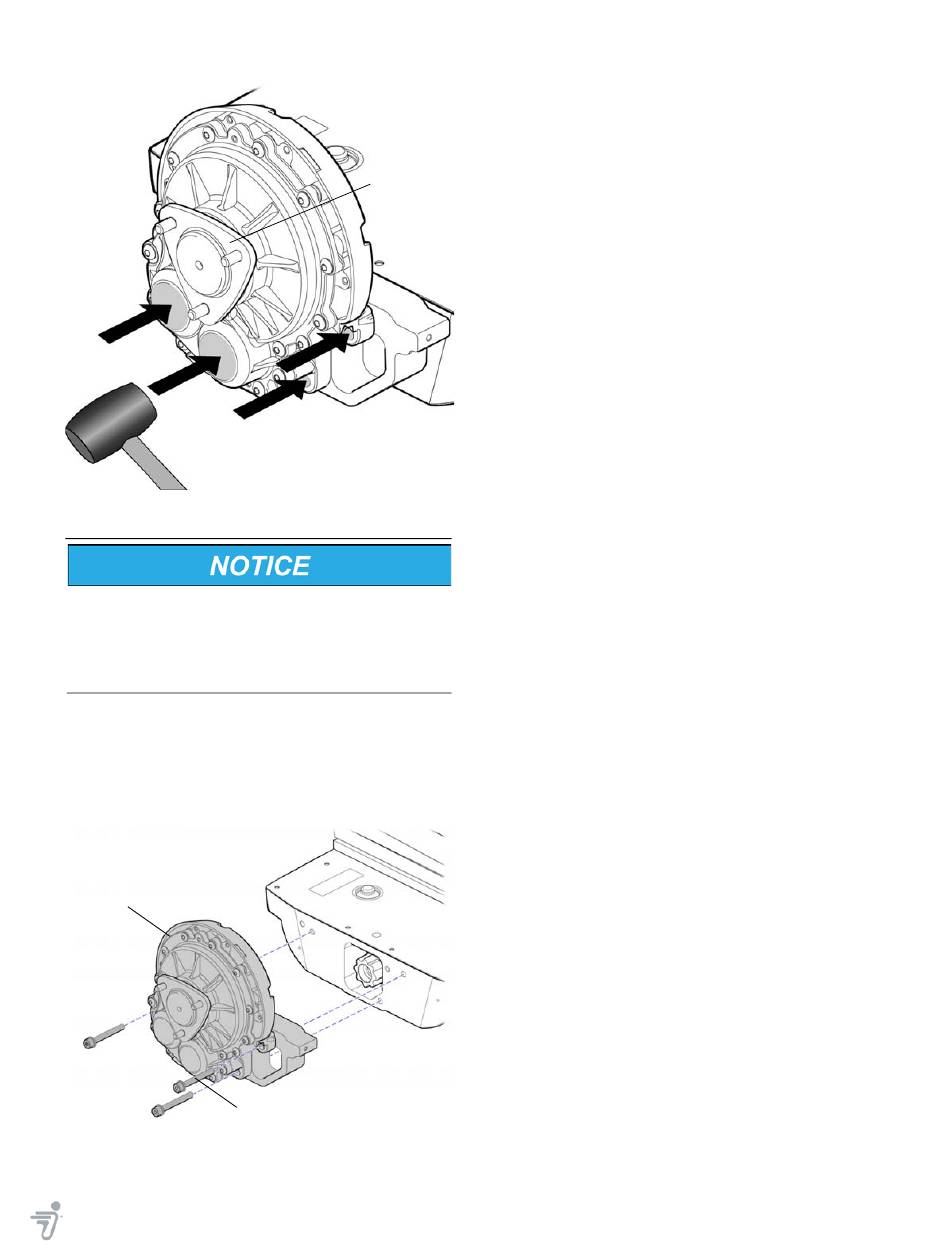

Figure 8‐7: Tap Gearbox to Seat Against Chassis
Do not use gearbox fasteners to seat gearbox to
chassis. Make sure gearbox and spacer are
completely seated prior to tightening gearbox to
specified torque. Failure to do so could result in
stripped chassis holes.
10. Install (3) new gearbox fasteners (20537‐
00002). Thread in by hand, and then torque
to 40 N‐m using T‐45 6‐lobe wrench with 3/
8"‐drive socket. See Figure 8‐8.
Gearbox
20919-00001
20537-00002
Figure 8‐8: Install Gearbox Fasteners
11. Reinstall fascia trim (page 6‐4).
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
12. Reinstall gearbox trim cover (page 6‐5).
13. (Model i2) Reinstall fender (page 5‐3).
(Model x2) Reinstall fender (page 5‐4) and
fender frame (page 5‐5).
flange
14. Reinstall appropriate tire/wheel assembly:
15. Reinstall mats (page 2‐3).
16. Reinstall LeanSteer frame (page 1‐6).
17. Perform post‐service tests (page A‐1).
• Model i2 (page 4‐3)
• Model x2 (page 4‐4)
• Model x2 Turf (page 4‐5)
8‐7
