Wireless InfoKey Controller Dock Removal and Installation
To remove Wireless InfoKey controller dock:
1. Make sure Segway PT is powered off and
unplugged.
2. Using 3mm hex wrench, remove fastener
that holds Wireless InfoKey controller dock
to LeanSteer frame. See Figure 1‐11.
3. Remove Wireless InfoKey controller dock.
InfoKey Dock

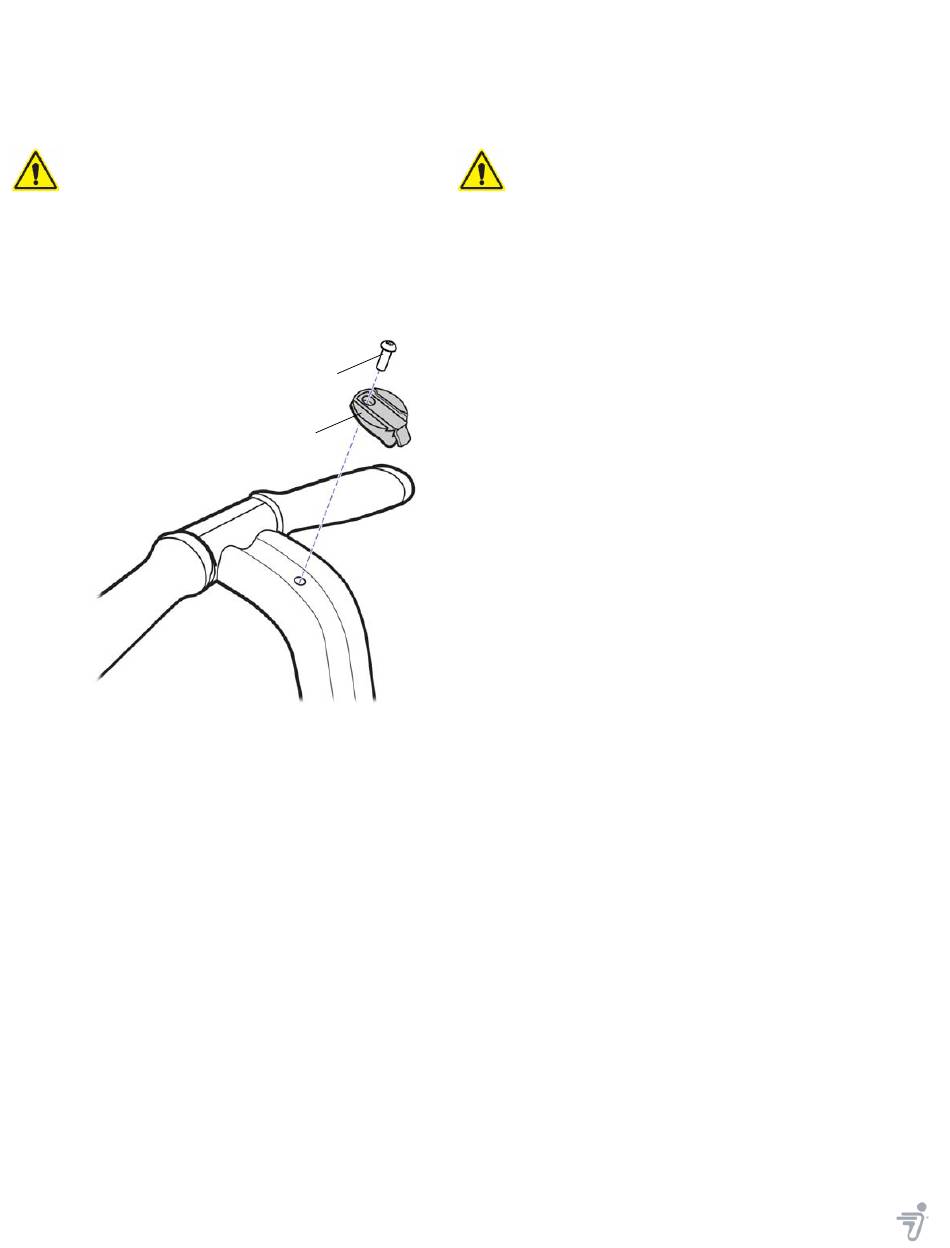

Figure 1‐11: Replace Wireless InfoKey Controller Dock
1‐8
20306-00003
20946-00001
To install Wireless InfoKey controller dock:
1. Make sure Segway PT is powered off and
unplugged.
2. Place Wireless InfoKey controller dock
against upper LeanSteer frame with release
tab oriented at bottom. See Figure 1‐11.
3. Thread 3mm fastener (20306‐00003) through
hole in top of Wireless InfoKey controller
dock and into upper LeanSteer frame.
4. Using 3mm hex wrench, tighten fastener to
2.0 N‐m (18 in‐lbf).
5. Perform post‐service tests (page A‐1).
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement
