C. Fasteners

FASTENERS

Use only Segway-approved fasteners.
•
Do not tighten or reuse any fastener except the screws used to attach the battery packs, wheel nuts, and
•
LeanSteer frame. Instead, when any other fastener is loose or removed, replace the fastener with a new
Segway-approved fastener. See Appendix C,
Before using a fastener, make certain the fastener is the correct size and type with any necessary washer
•
and thread lock in place (see
Since the pre-applied thread lock compound is intended for single use only, reuse of fasteners is not
•
permitted with the exception of the wheel nuts, battery fasteners, and LeanSteer clamp bolt.
Do not attempt to repair any stripped or damaged screw hole. Instead, replace the part. If replacement
•
part is not available, do not reassemble.
Insert fasteners slowly and carefully. Do not cross-thread or over-tighten fasteners. Tighten only to the
•
prescribed torque.
Failure to adhere to these warnings could lead to serious injury or death or damage to property.
•

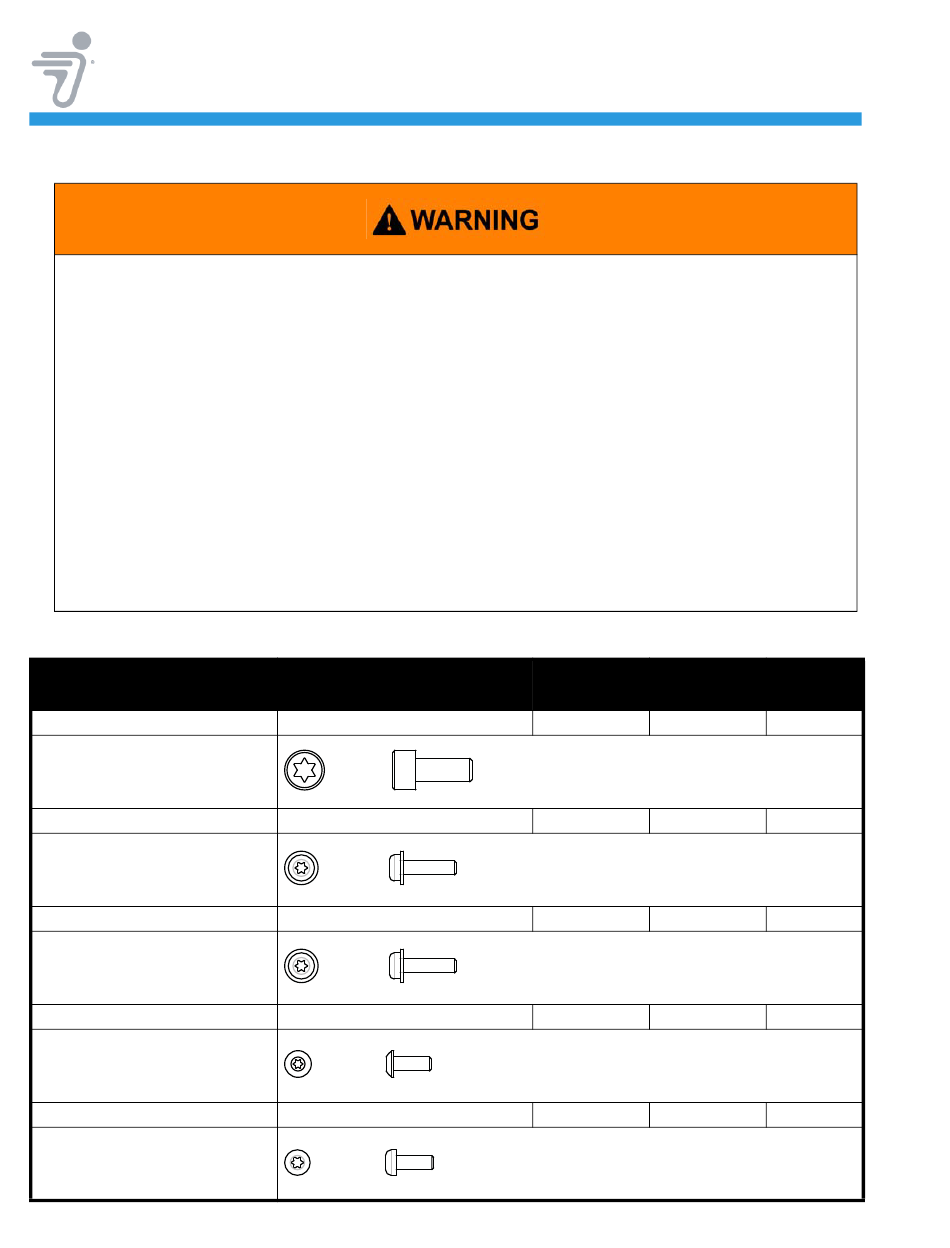

Table C-1: Fasteners
Part Number
20536‐0001
SHCS, M5 x 0.8 x 12
20566‐00001
Self‐tapping for use only in
replacement chassis,
M3 x 0.5 x 12, T‐10 drive
20972‐00001
For use when reinstalling into
original chassis
20567‐00001
Self‐tapping for use only when
installing into new chassis
20973‐00001
For use when reinstalling into
original chassis
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
"Fasteners"
Table C-1).
Application
Motor
Balance Sensor Assembly (OEM) 4
Balance Sensor Assembly
CU Board (OEM)
CU Board
for more information.
Qty/Unit Drive
4 T‐25
T‐15
4 T‐15
28 T‐15
28 T‐15
Torque
(N-m)
5.0
1.6
1.6
1.6
1.6
C‐1
