Establishing A Serviceable Power Base - Segway Personal Transporter i2 Parts Replacement Manual

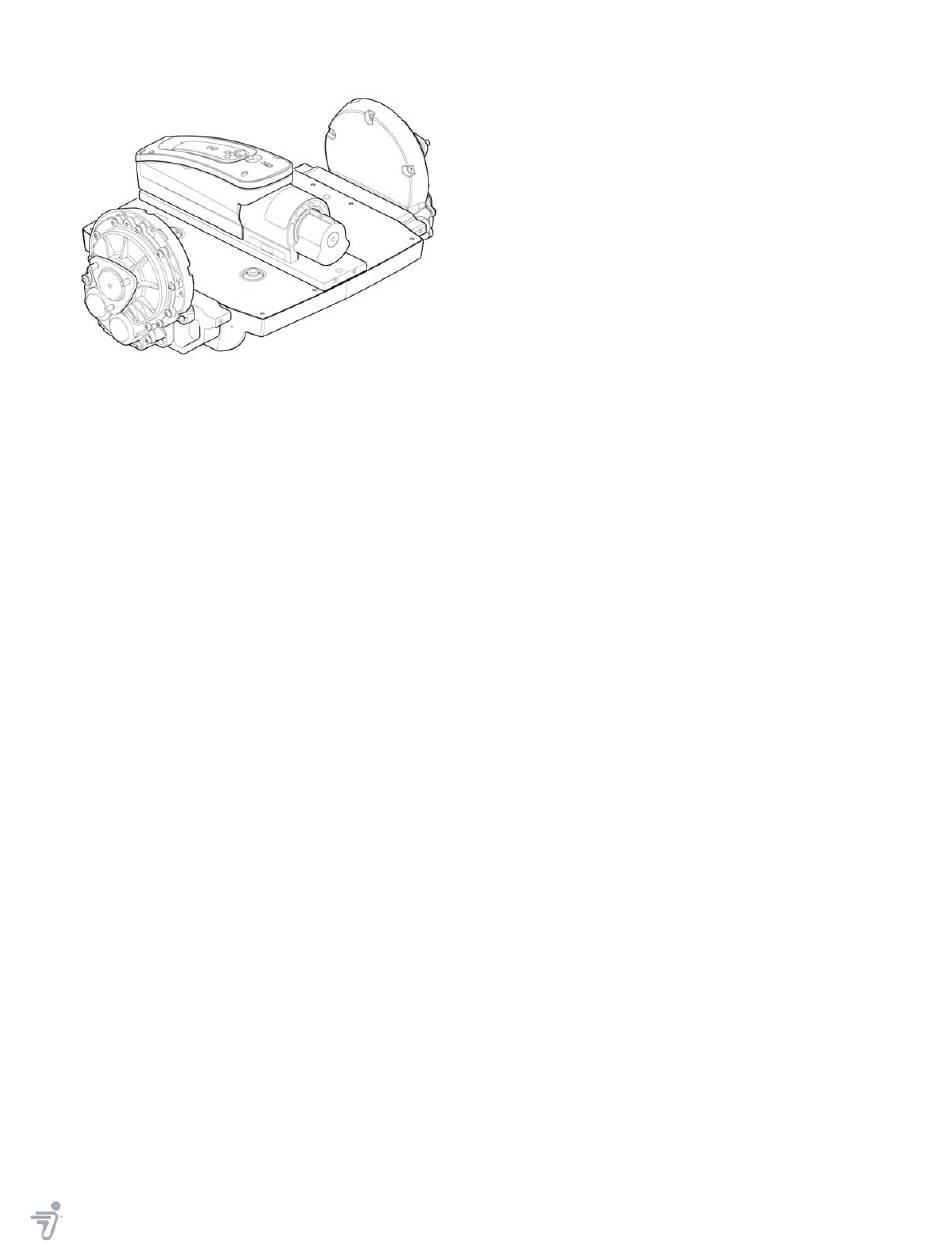

Figure 7‐1: Serviceable Power Base
In many cases, the serviceable power base will
be used as a replaceable module. Note that the
unit serial number and Wireless InfoKey
controller are associated with the serviceable
power base.

Establishing a Serviceable Power Base

The serviceable power base is the launch point
for many service procedures. Throughout this
guide, you will be instructed to "establish a
serviceable power base," which means to
remove (or reassemble) the following
components from the Segway PT:
• LeanSteer frame (qty 1) (page 1‐5)
• Mat (qty 2) (page 2‐3)
• Battery packs (qty 2) (page 3‐3)
• Tire/wheel assembly (qty 2):
- Model i2, page 4‐3
Model x2, page 4‐4
-
Model x2 Turf, page 4‐5
-
• Fender (qty 2)
- Model i2 (page 5‐2)
- Model x2 (page 5‐4)
• Power base trim (qty 2)
- Front and rear fascia (page 6‐4)
- Gearbox cover trim (page 6‐5)
• Console trim (page 6‐6)
