Gearbox Trim Cover Removal and Installation

To remove gearbox trim cover:
1. Make sure Segway PT is powered off and
unplugged.
2. (Model x2) Remove fender and frame
assembly (page 5‐5) and G‐box cover.
3. (Model i2) Using 4mm hex wrench, loosen
and remove (3) button‐head fasteners from
gearbox trim cover. See Figure 6‐3.

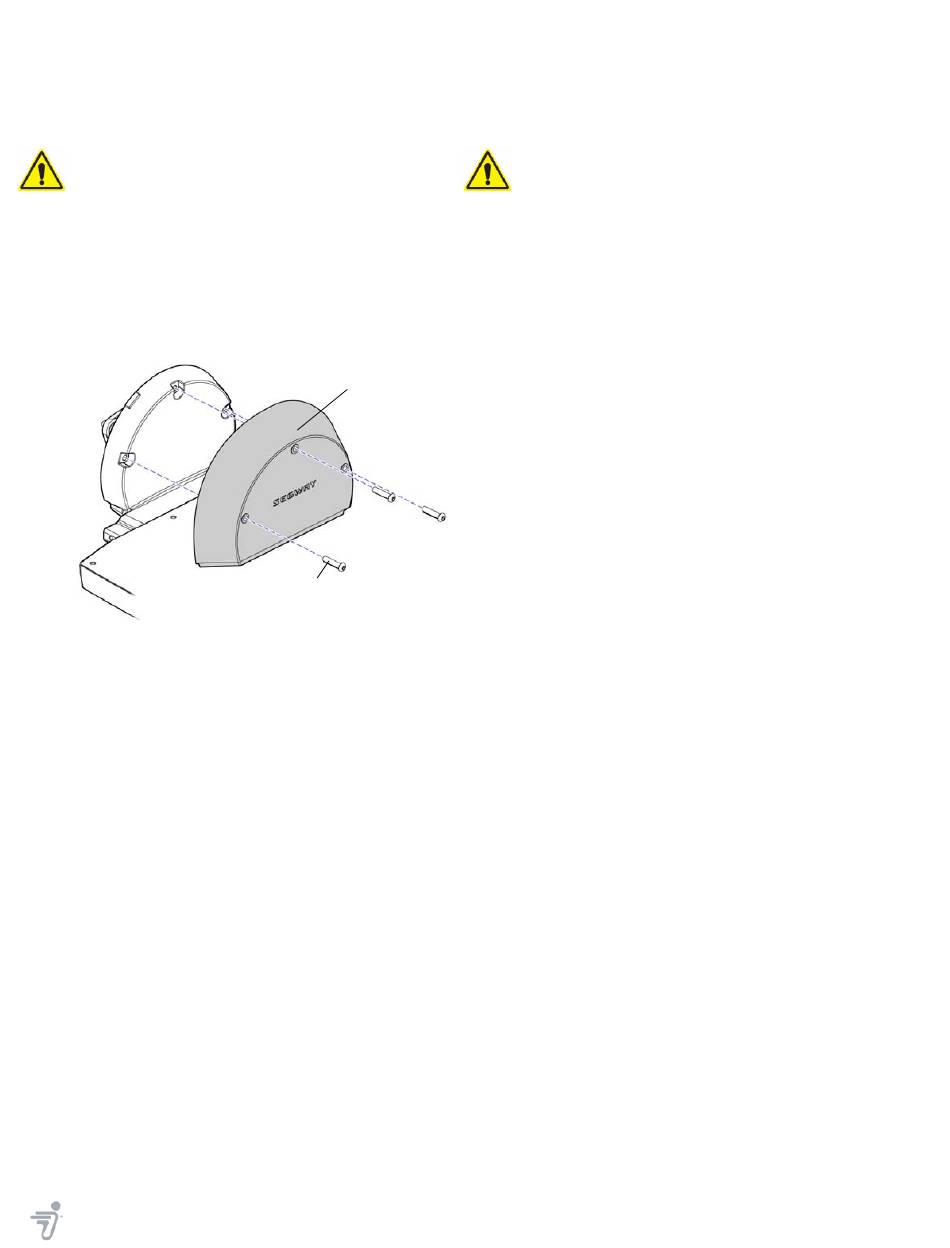

Figure 6‐3: Remove Gearbox Trim Cover
4. Set aside fasteners and trim piece.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
Gearbox Cover
20152-00002
20553-00001
To install gearbox trim cover:
1. Make sure Segway PT is powered off and
unplugged.
2. Align holes in gearbox trim cover with holes
in gearbox.
3. (Model x2 only) Install both fender
(page 5‐4) and frame assemblies (page 5‐5).
4. Thread (3) button‐head fasteners (20553‐
00001) through holes in gearbox trim cover
into gearbox. See Figure 6‐3.
5. Using 4mm torque wrench, drive fasteners
and torque to 6.0 N‐m.
6. Perform post‐service tests (page A‐1).
6‐5
