Motor Removal - Segway Personal Transporter i2 Parts Replacement Manual

Motor Removal

To remove motor:
1. Make sure Segway PT is powered off and
unplugged.
2. Establish a serviceable power base
(page 7‐1).
3. Remove gearbox on same side of machine as
motor that you want to remove (page 8‐4).
4. Remove pivot base assembly (page 9‐14).
5. Remove chassis cover (page 10‐3).
6. Use small flathead screwdriver and gently
lift tab on connector (see Figure 13‐1) from
back of motor, and then carefully pull on
both connectors to unseat. See Figure 13‐2.

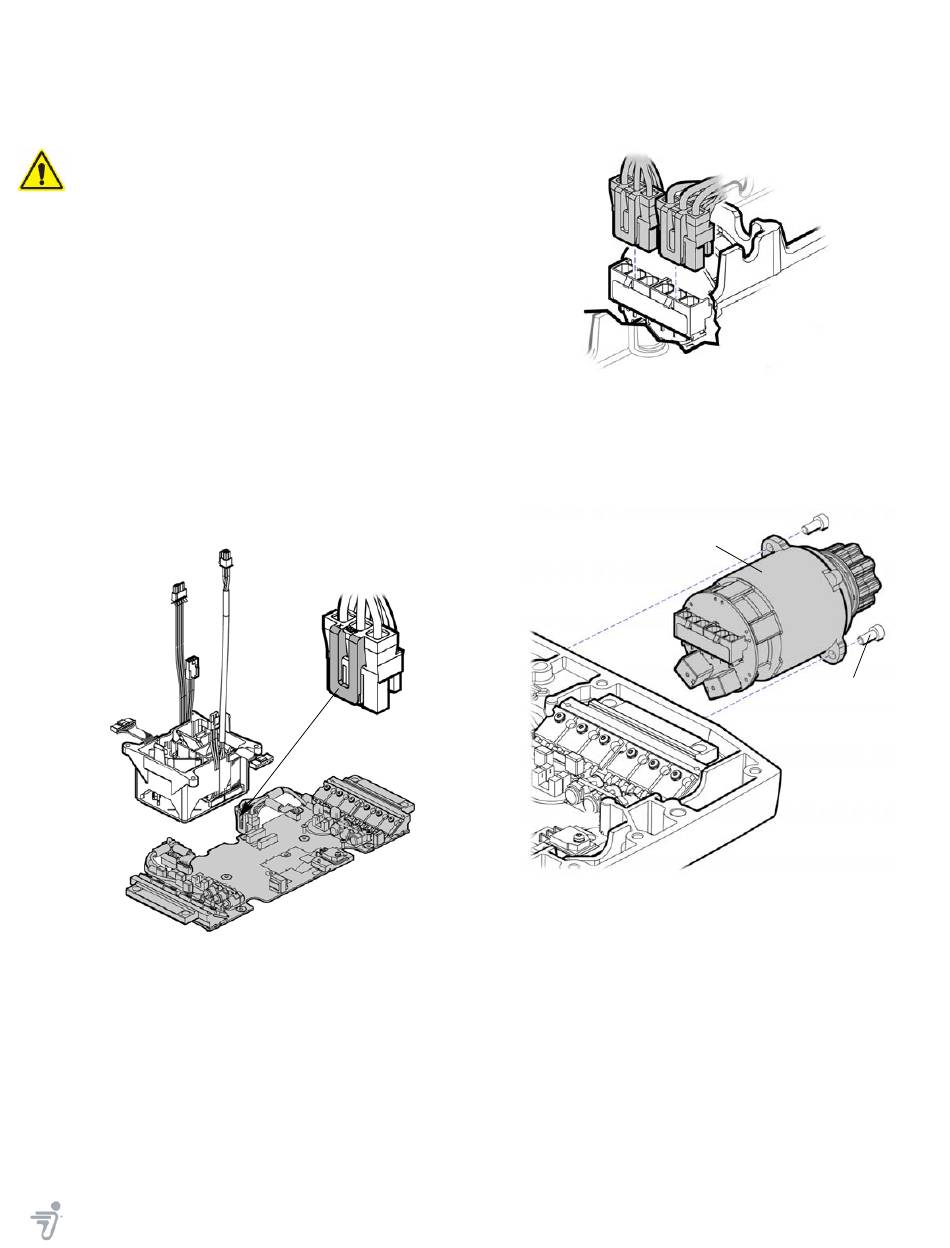

Figure 13‐1: Pry Connector Tab
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
connector tab
Figure 13‐2: Disconnect CU Motor Harness from Motor
7. Use T‐25 6‐lobe wrench to remove (2) SHCS,
M5 0.8 12, 6‐lobe screws that attach
x x
motor to chassis. See Figure 13‐3.
Motor with Coupling
21089-00001
Figure 13‐3: Remove Motor
8. Pull motor straight out of side of chassis.
20536-00001
13‐3
