LeanSteer Frame Installation

To install LeanSteer frame:
1. Make sure Segway PT is powered off and
unplugged.
2. Slide LeanSteer frame onto pivot assembly.
See Figure 1‐6.

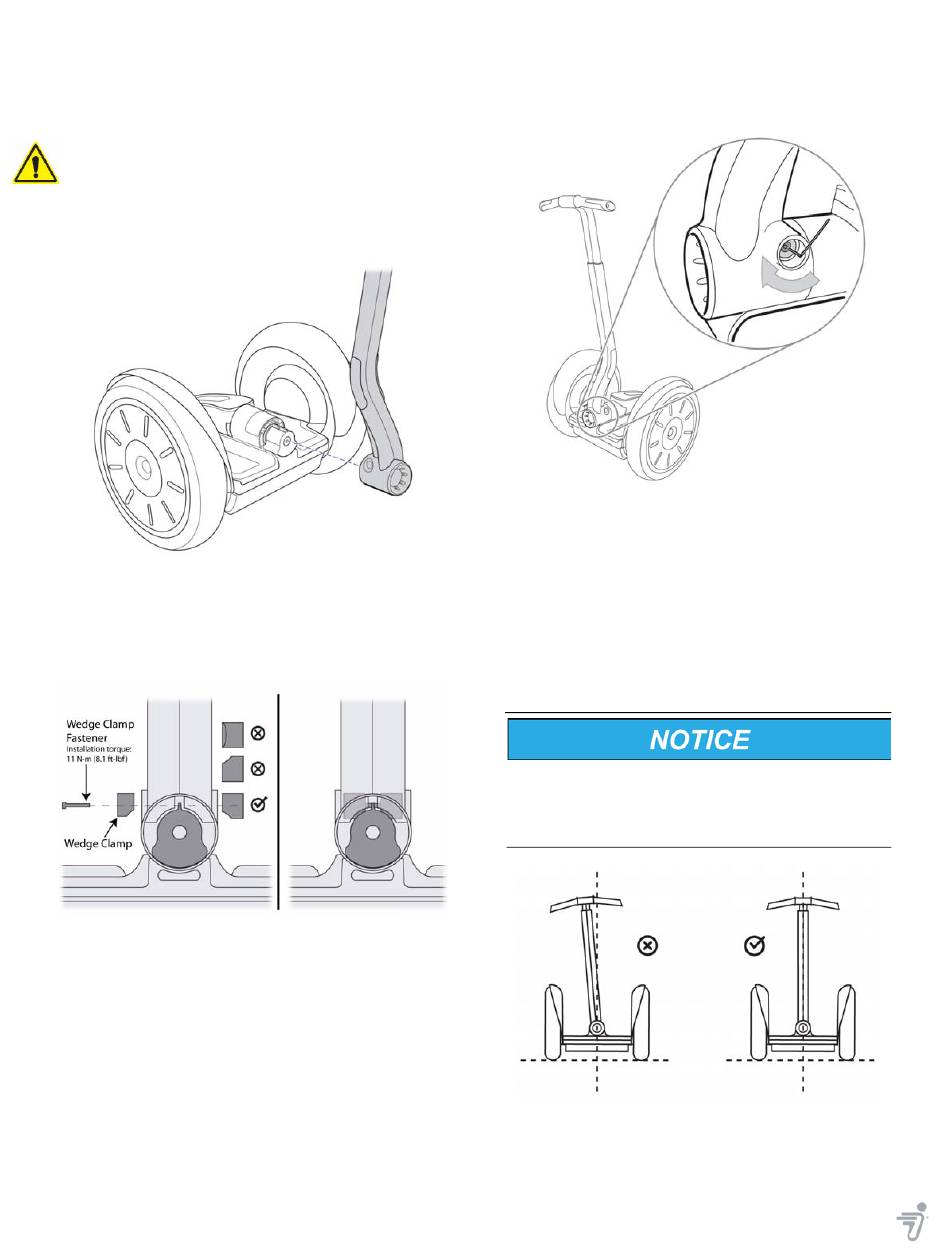

Figure 1‐6: Attach LeanSteer Frame to Pivot Assembly
3. If wedge clamps are not installed, install
each wedge clamp, curved side facing down
and inserted in either side of LeanSteer
frame base. See Figure 1‐7.
Figure 1‐7: Install Wedge Clamps Curved Side Down
4. Loosely thread in wedge clamp fastener.
5. Prior to tightening fastener, visually check
that handlebar is straight and centered. If it
is not straight and centered, adjust
LeanSteer frame to straighten and center it.
Fastener must go through notch in pivot
assembly.
6. Tighten fastener (20631‐00001) to 11.0 N‐m
(8.1 ft‐lbf). See Figure 1‐8.
1‐6
Figure 1‐8: Tighten Fastener Holding LeanSteer Frame in
7. Move LeanSteer frame fully left and right,
until it touches each fender, and ensure
LeanSteer frame returns to a straight‐up
position. If LeanSteer frame does not return
to a straight‐up position, loosen wedge
clamp fastener and return to Step 5. See
Figure 1‐9.
If LeanSteer frame makes a clunking or popping
sound when moved, frame was not properly
aligned when torqued. Loosen LeanSteer frame
(without removing), realign, and retorque.
Figure 1‐9: Ensure LeanSteer Frame Returns to a Straight‐
up Position
8. Perform post‐service tests (page A‐1).
