Console Trim Removal or Installation

To remove console trim:
1. Make sure Segway PT is powered off and
unplugged.
2. Pull up on front portion of trim and tilt it
away from charge port. See Figure 6‐4.
Console Trim
21281-00001 Black
21281-00002 White
21281-00005 Sage

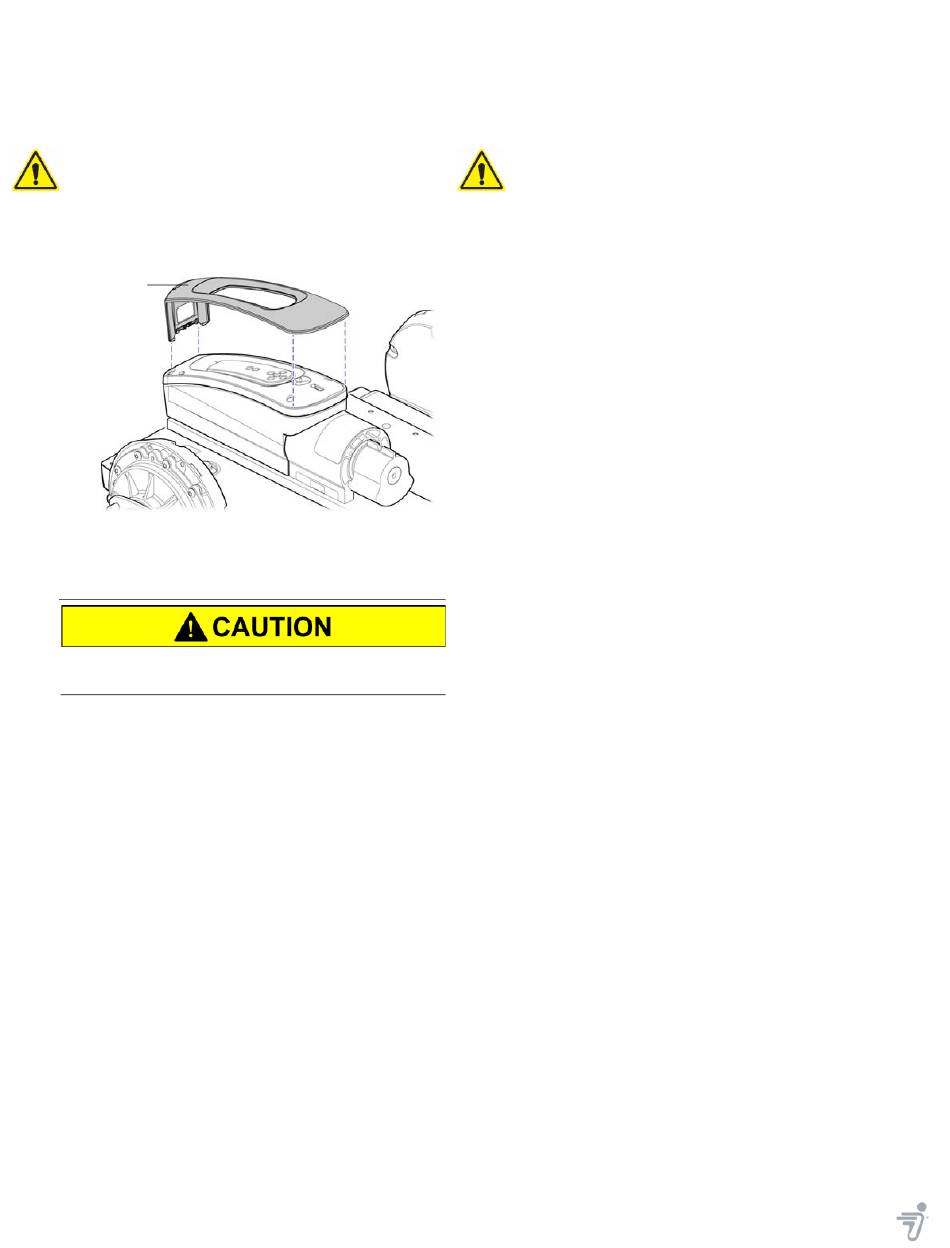

Figure 6‐4: Remove or Install Console Trim
Make sure IEC connector (charge) port remains
clean and dry.
6‐6
To install console trim:
1. Make sure Segway PT is powered off and
unplugged.
2. Press rear portion of console trim over
charge port.
3. Tilt front portion of console trim to engage
with console. See Figure 6‐4.
4. Perform post‐service tests (page A‐1).
