Fender Removal and Installation, x2

To remove fender:
1. Make sure Segway PT is powered off and
unplugged.
2. Remove tire/wheel assembly (page 4‐4).
3. Using a 4mm wrench, remove (4) button‐
head fasteners to detach fender from fender
frame. See Figure 5‐2.
Fender
20961-00001 (left)/20962-00001 (right)
20871-00001

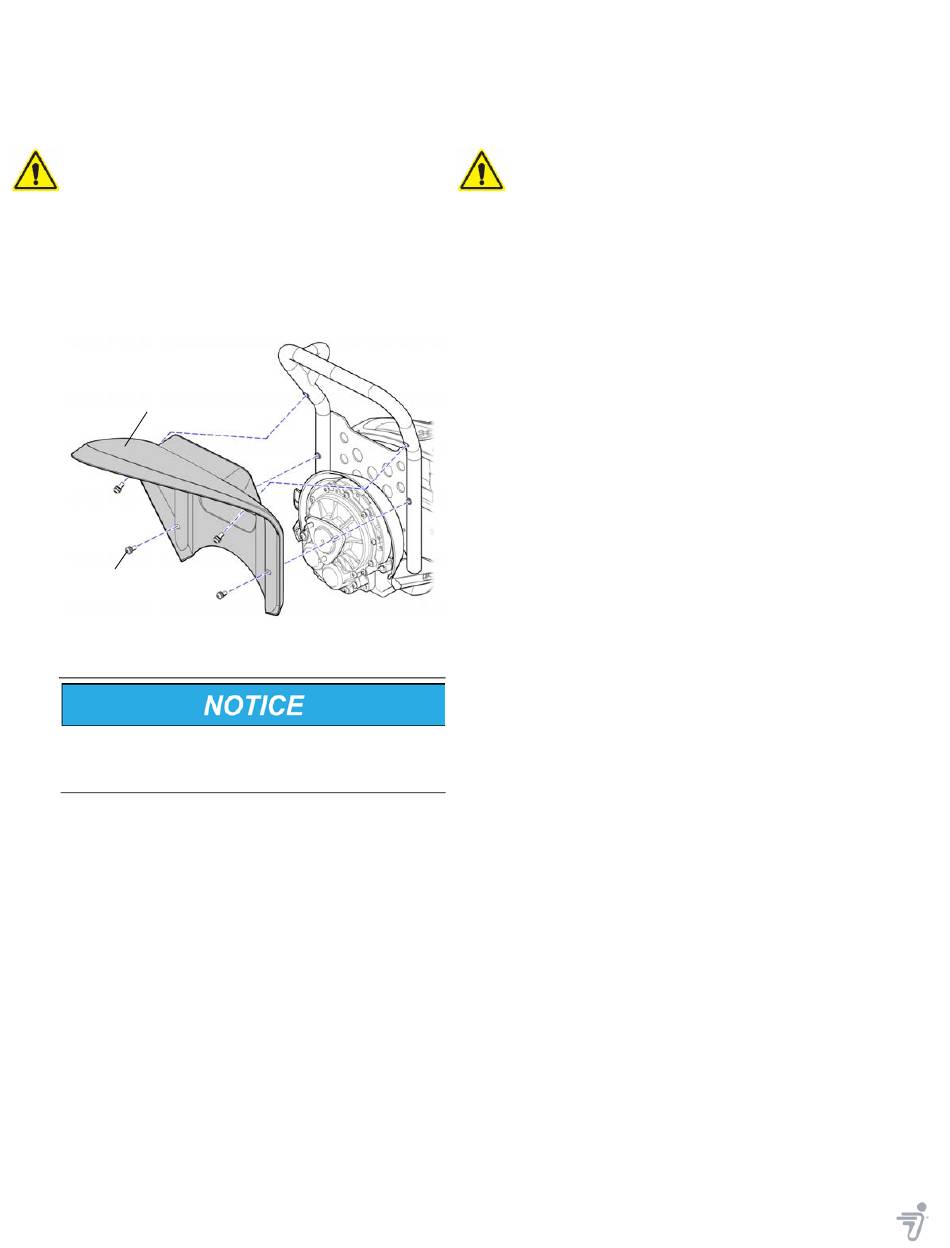

Figure 5‐2: Remove or Install Fender, x2
Fender and frame assembly can be removed as a
unit by removing fender frame fasteners
5-5).
5‐4
To install fender:
1. Make sure Segway PT is powered off and
unplugged.
2. Orient and place left fender on left fender
frame, and right fender on right fender
frame.
3. Ensure grommets are in place on fender. If
grommets need to be installed use finger to
push grommet into place. Note that
grommets are bidirectional and can be
installed from either side of fender.
4. Using a 4mm wrench, drive (4) button‐head
fasteners (20871‐00001) until seated. Tighten
one‐half to one full turn. See Figure 5‐2.
5. Attach fender to fender frame (page 5‐5).
6. Install tire/wheel assembly (page 4‐4).
7. Perform post‐service tests (page A‐1).
