Console Housing Removal and Installation

The console housing contains the UIC and EMI
filter.

When to Replace

Replace the console housing if (including and
without limitation):
It is cracked or otherwise physically
•
damaged.
The charge port gasket is damaged.
•
To remove console housing:
1. Make sure Segway PT is powered off and
unplugged.
2. Remove pivot base assembly (page 9‐14).
3. Depending on revision, use T‐20 6‐lobe
wrench or 3mm hex wrench to remove (6)
screws that attach base plate to console
housing. See Figure 9‐18.
20203-00002

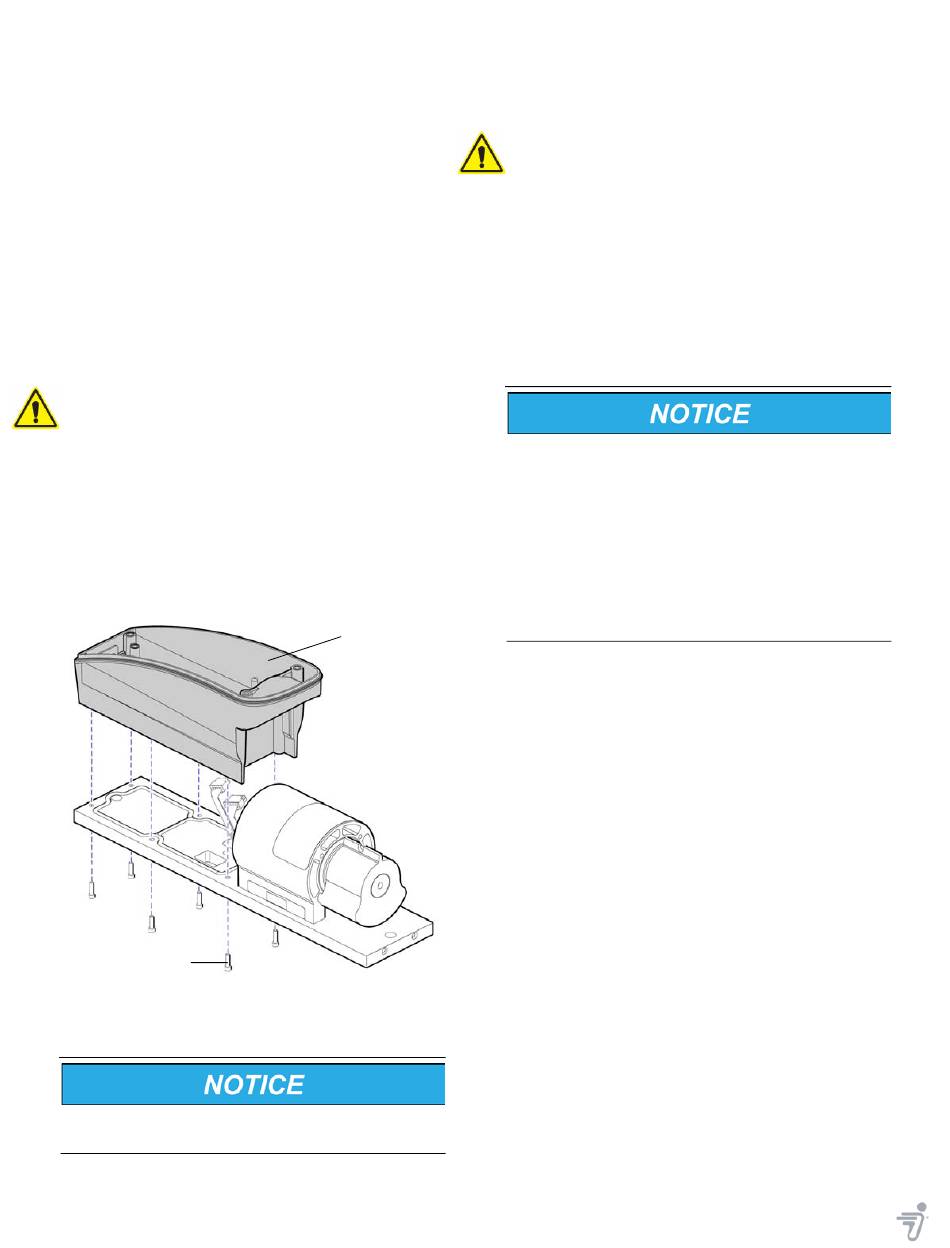

Figure 9‐18: Remove and Install Console Housing
4. Remove console housing.
If the inserts or plastic are damaged, the console
housing must be replaced.
9‐16
To install console housing:
1. Make sure Segway PT is powered off and
2. Thread (6) SHCS, M4
3. Using a T‐20 6‐lobe wrench, drive each
4. Perform post‐service tests (page A‐1).
Console Housing
20925-00002 (v2)
20055-00002 (v1)
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement
unplugged.
screws (20203‐00002) through base plate into
console housing. See Figure 9‐18.
screw and torque to 1.0 N‐m.
First-revision console housing cover parts are no
longer manufactured or supported. First-revision
components are not compatible with second-
revision components; similarly, second-revision
components are not backward compatible with
first-revision components. AS A RESULT, IF ANY
FIRST-REVISION CONSOLE HOUSING, GASKET,
OR COVER IS DAMAGED, THE COVER, GASKET,
HOUSING, AND TRIM MUST ALL BE REPLACED
USING THE CURRENT (SECOND) REVISION.
0.7 16, 6‐lobe
x x
