Fender Removal and Installation, i2
To remove fender:
1. Make sure Segway PT is powered off and
unplugged.
2. Remove tire/wheel assembly (page 4‐3).
3. Using a T‐20 6‐lobe , remove (4) button‐head
fasteners. See Figure 5‐1.
Fender
20945-00001
20538-00001

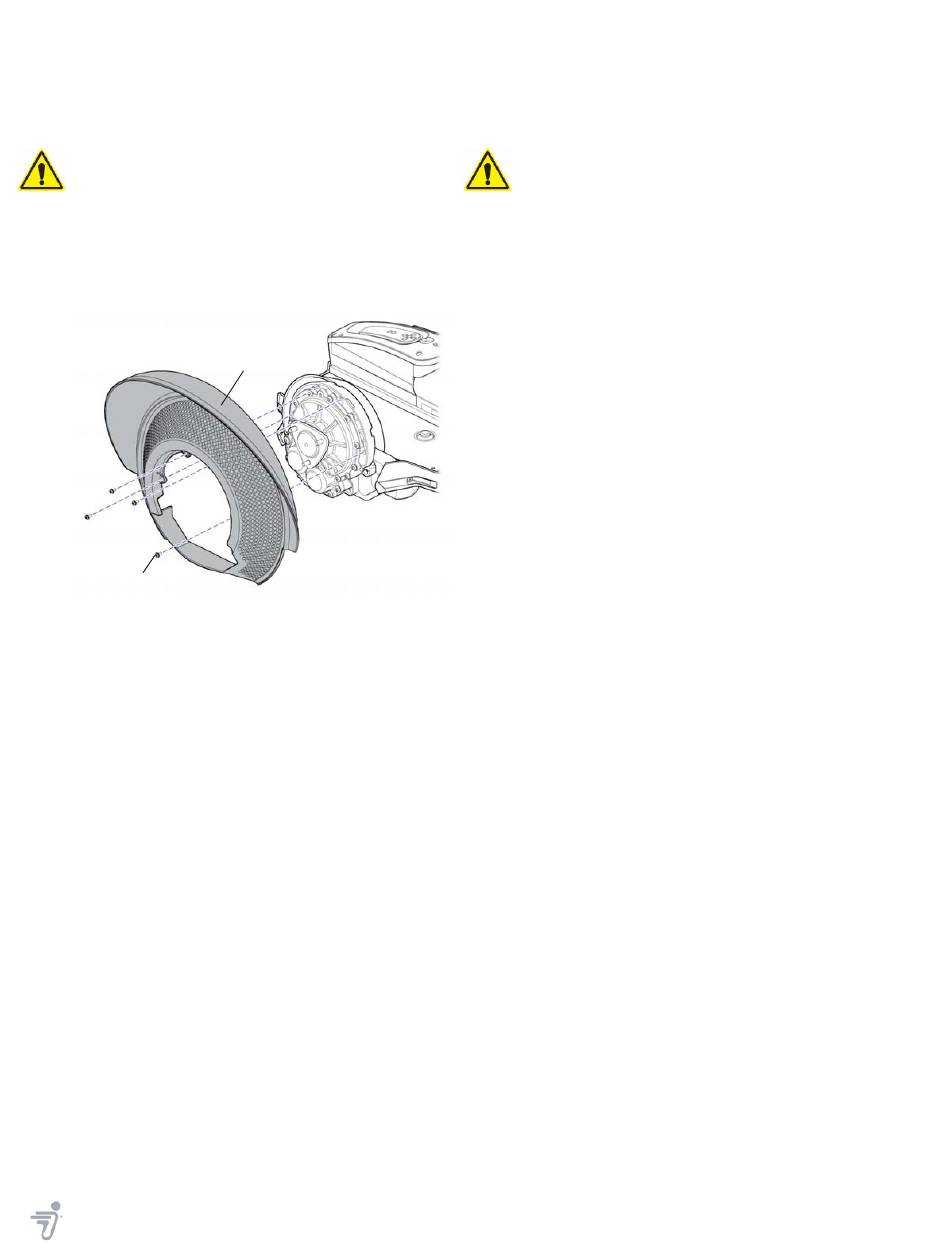

Figure 5‐1: Remove or Install Fender, i2
4. Lift fender and remove from gearbox.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
To install fender:
1. Make sure Segway PT is powered off and
unplugged.
2. Orient and place fender on gearbox. Use T‐
20 6‐lobe wrench to drive (4) button‐head
fasteners (20538‐00001) and torque to
1.5 N‐m. See Figure 5‐1.
3. Install tire/wheel assembly (page 4‐3).
4. Perform post‐service tests (page A‐2).
