Pivot Base Assembly Removal and Installation

The pivot base assembly consists of the pivot
base, gaskets (2), and pivot assembly (pivot and
steering sensor), as shown in Figure 9‐16.
pivot base
pivot and steering sensor

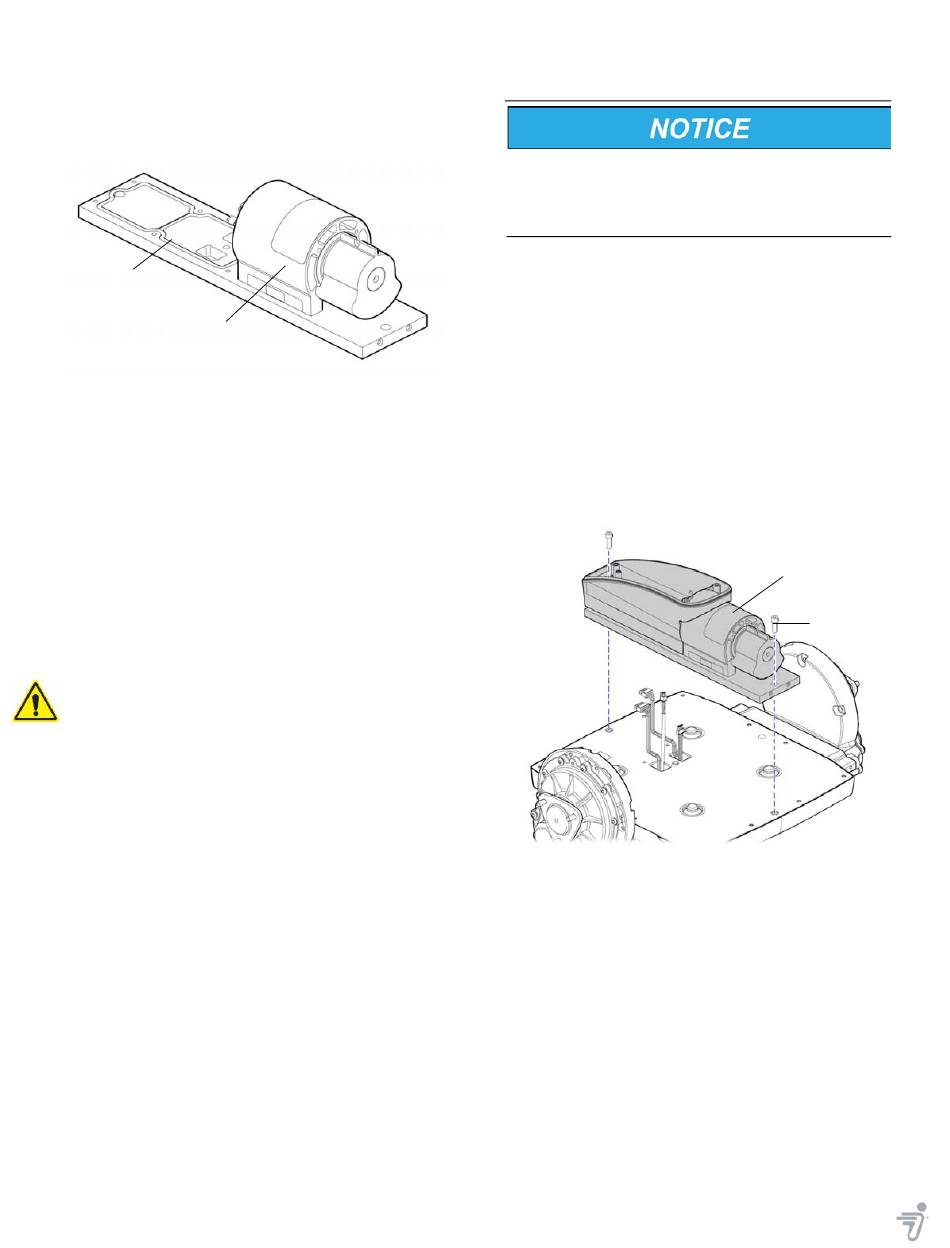

Figure 9‐16: Pivot Base Assembly Components

When to Replace

Replace the pivot base assembly when directed
to do so by a Segway Service Representative.
The pivot base assembly components are not
field serviceable. If you determine that the pivot
base assembly is either defective or damaged,
the entire pivot base assembly must be replaced
as a unit.
To remove pivot base assembly:
1. Make sure Segway PT is powered off and
unplugged.
2. Establish a serviceable power base
(page 7‐1).
3. Remove console cover and set aside
(page 9‐4).
4. Remove UIC and set aside (page 9‐9).
5. Remove EMI filter and set aside (page 9‐12).
6. Use T‐30 6‐lobe wrench to remove (2) screws
that anchor base plate to chassis (see
Figure 9‐16).
7. Carefully remove large ferrite core from CU
harness and small ferrite cores from BSA
harnesses.
9‐14
Do not damage ferrites because they must be
reinstalled. If no ferrite cores are present, see in
step 8 on page 9-15. Damaged ferrites must be
replaced.
8. Lift pivot base straight up, feeding harnesses
through holes. Viewing from the rear of the
chassis, the harness connections should be
as follows:
• Left side: 10‐pin harness and a smaller
harness with purple wires.
• Right side: 12‐pin harness and a
smaller harness with orange wires.
See Figure 9‐17.
Figure 9‐17: Remove Pivot Base Assembly (with Console
Housing Attached)
9. Feed harnesses down through holes in pivot
base to remove console housing.
10. Inspect gasket to ensure it is clean and in
good condition.
11. Remove pivot base assembly.
12. Remove console housing (page 9‐16).
