Fender Frame Removal and Installation, x2

To remove fender frame:
1. Make sure Segway PT is powered off and
unplugged.
2. Remove tire/wheel assembly:
Model x2, page 4‐4
•
Model x2 Turf, page 4‐5
•
3. Remove fender (page 5‐4).
4. Using a 4mm hex wrench, remove (3)
button‐head frame fasteners and discard.
Fender Frame
20959-00001 (left)/20960-00001 (right)

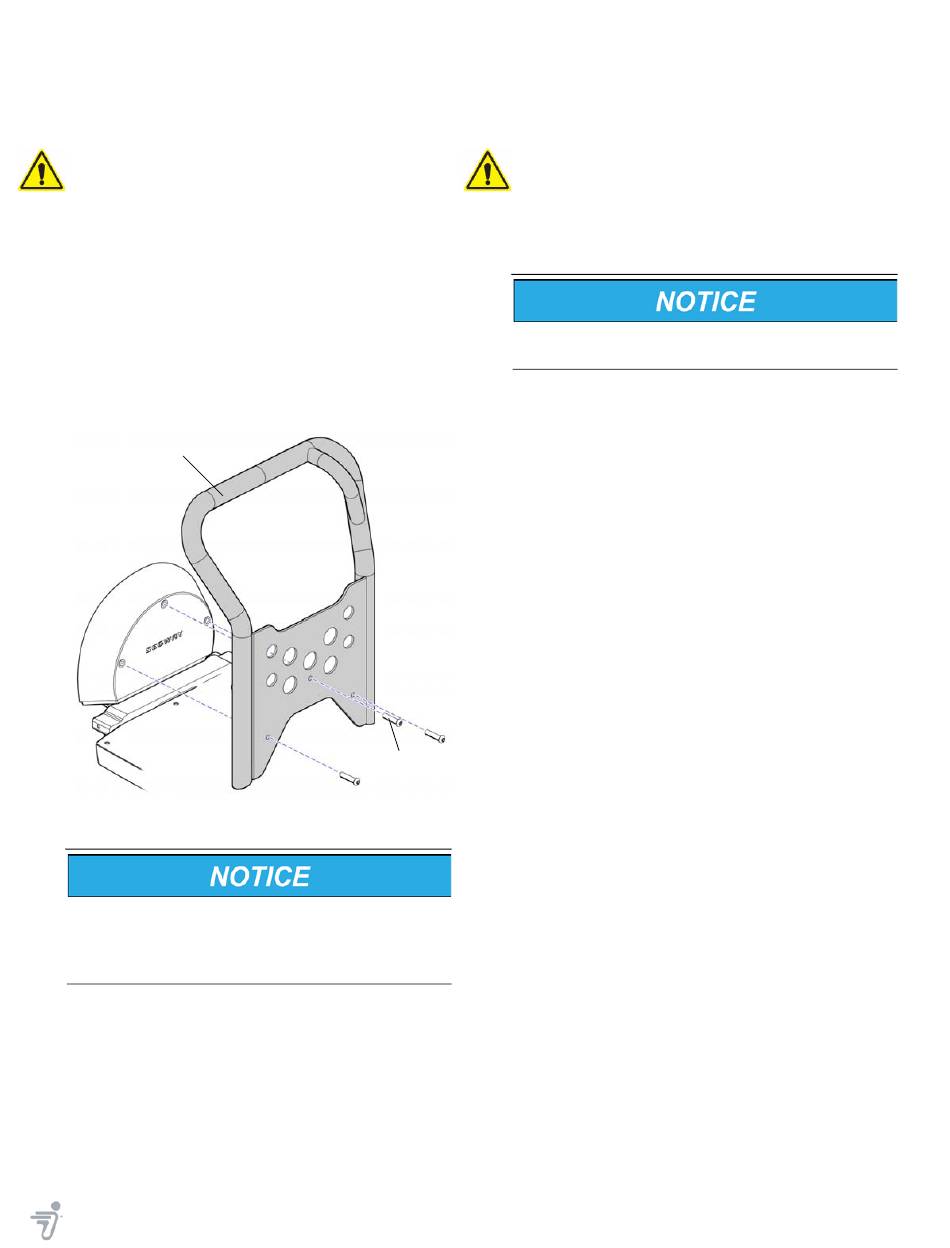

Figure 5‐3: Remove or Install Fender Frame, x2
Fender and fender frame assembly can be
removed as a unit (not shown). If so, frame
fasteners should be discarded and replaced with
new ones.
Segway® Personal Transporter i2, x2, x2 Turf Parts Replacement Guide
To install fender frame:
1. Make sure Segway PT is powered off and
unplugged.
2. Orient and place left and right fender frames
on appropriate side of gearbox.
Gearbox cover must be in place and properly
seated.
3. Using a 4mm hex wrench, drive (3) new
button‐head fasteners (20553‐00002) and
torque to 6 N‐m.
4. Install fender (page 5‐4).
5. Install tire/wheel assembly:
6. Perform post‐service tests (page A‐1).
20533-00001
Model x2, page 4‐4
•
Model x2 Turf, page 4‐5
•
5‐5
